Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 W10550195 Louver Appelez-nous -
3 W10658366 Led Light Assembly, Ac/dc Appelez-nous -
4 W10649522 Led Light Assembly, Dc Appelez-nous -
5 WPW10276792 Tubing, Water Reservoir   (Replaces: W10276792) Special Order $ 144.45

6 488280 Screw Appelez-nous -
7 W10840880 Air Diffuser Assembly Appelez-nous -
8 W10128735 Cover, Air Diffuser Appelez-nous -
9 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

10 W10141518 Screw Special Order $ 9.54

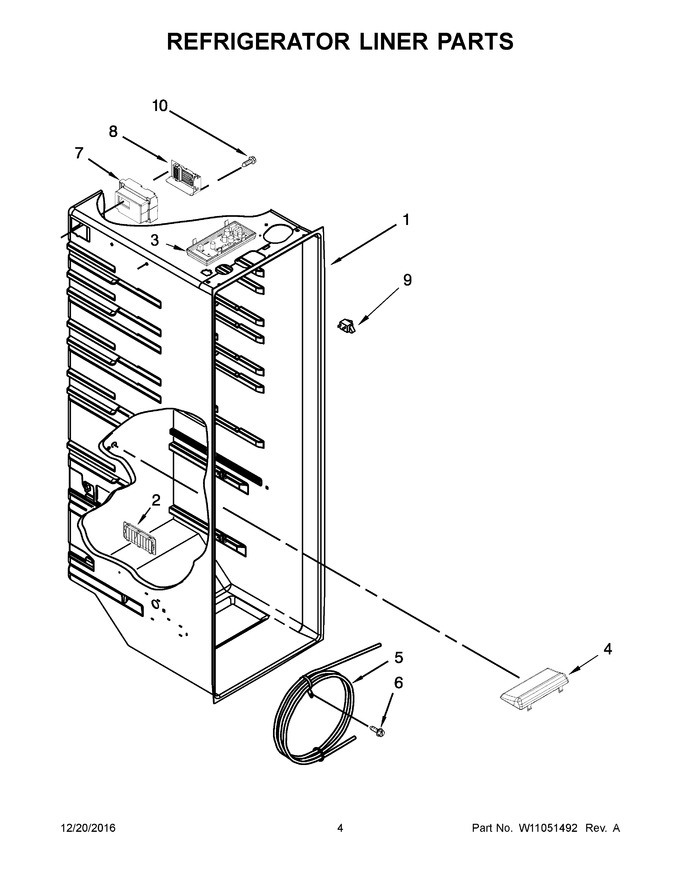

    View Diagram in Separate Window     Print Icon   Print Part List
