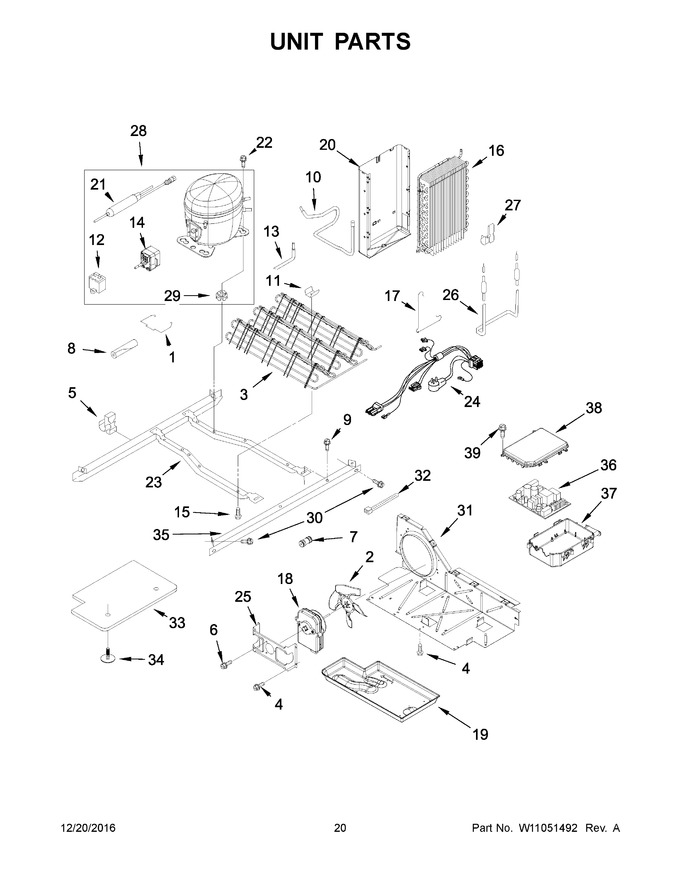

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2302129 | Strap, Bale |
|
- | |||||
| 2 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 96.66 | ||||
| 3 | 2324712 | Assembly, Condenser |
|
$ 308.05 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.59 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 10 | W10745338 | Tube, Suction |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 18.46 | |||||
| 12 | 2321245 | Capacitor |
|
- | |||||
| 13 | 2325479 | Tube, Process |
|
- | |||||
| 14 | W10361441 | Device, Start |
|
- | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 339.85 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W10837641 | Fan, Motor (Replaces: W10293680) |
|
- | |||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: W10614158) |
|
Immediately | $ 113.18 | ||||
| 20 | WPW10194474 | Assembly, Heat Shield And Drain Pan (Replaces: W10194474) |
|
$ 119.53 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 13.40 | |||||
| 23 | 2304903 | Frame, Unit Mounting |
|
$ 233.03 | |||||
| 24 | W10581996 | Harness, Unit |
|
- | |||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.31 | |||||
| 26 | WPW10123612 | Heater, Defrost (Replaces: W10123612) |
|
$ 83.57 | |||||
| 27 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 28 | W10183407 | Compressor (Replaces: W10120455) |
|
$ 414.86 | |||||
| 29 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
Immediately | $ 7.19 | ||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10332806 | Baffle, Air |
|
$ 102.82 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 33 | W10836751 | Cover, Unit |
|
- | |||||
| 34 | 489396 | Clip |
|
$ 10.72 | |||||
| 35 | W10207512 | Rail, Unit Mounting |
|
- | |||||
| 36 | W11103354 | Control, Minotaur (Replaces: W10617099) |
|
$ 366.07 | |||||
| 37 | W10459452 | Enclosure, Electronic Control |
|
- | |||||
| 38 | W10313215 | Cover, Electronic Control (Replaces: W10459453) |
|
$ 74.28 | |||||
| 39 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 91.35 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
