SELECT A DIAGRAM

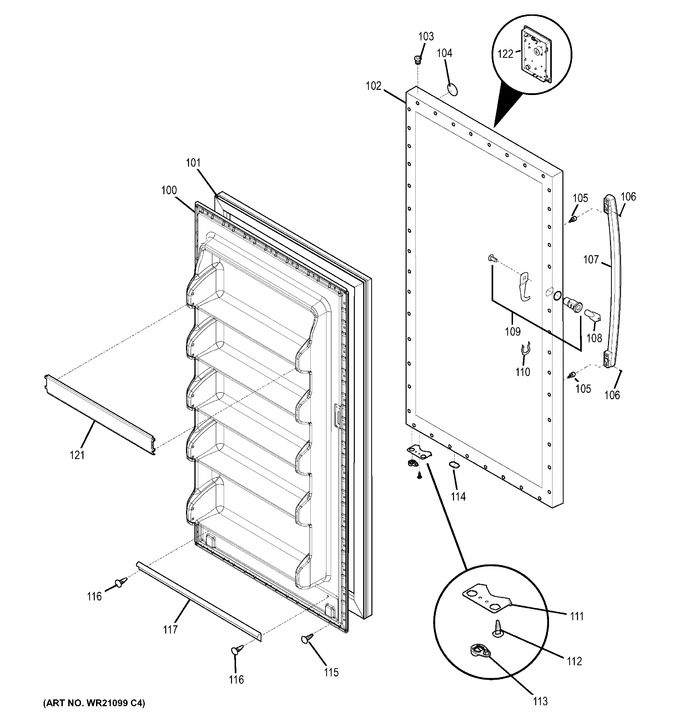

1 - Door
2 - Cabinet
3 - Machine Compartment
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WR78X24028 | Panel-outer |
|
- | |||||
| 101 | WR24X23529 | Gasket-door,white |
|
- | |||||
| 102 | WR78X24029 | Panel-outer Door |
|
- | |||||
| 103 | WR02X23506 | Bearing,hinge ,black ,to |
|
- | |||||
| 104 | WR04X23538 | Nameplate |
|
- | |||||
| 105 | WR01X10873 | Screw-shoulder, #10 Ab, |
|
- | |||||
| 106 | WG03A00456 | Screw-set (Replaces: WR01X10922) |
|
$ 64.18 | |||||
| 107 | WR12X23532 | Handle,ge ,metal |
|
- | |||||
| 108 | WR05X10005 | Key |
|
- | |||||
| 109 | WR05X10038 | Lock Assy |
|
- | |||||
| 110 | WR01X10870 | Clip, Spring |
|
- | |||||
| 111 | WR02X23525 | Door Stop |
|
- | |||||
| 112 | WR02X12989 | Screw, Door Stop Mtg, Fh |
|
- | |||||
| 113 | WR02X23518 | Closer,bearing Hinge |
|
- | |||||
| 114 | WR02X23542 | Plug-button,door Base |
|
- | |||||
| 115 | WR01X10797 | Screw,ph Truss Head ,8-1 |
|
- | |||||
| 116 | 5304472186 | Clip, Panel Mtg (Replaces: WR01X10916) |
|
$ 11.57 | |||||
| 117 | WR14X23528 | Gasket,secondary |
|
- | |||||
| 121 | WR17X24031 | Rack,door |
|
- | |||||
| 122 | WR09X24017 | Control,electronic |
|
- |
