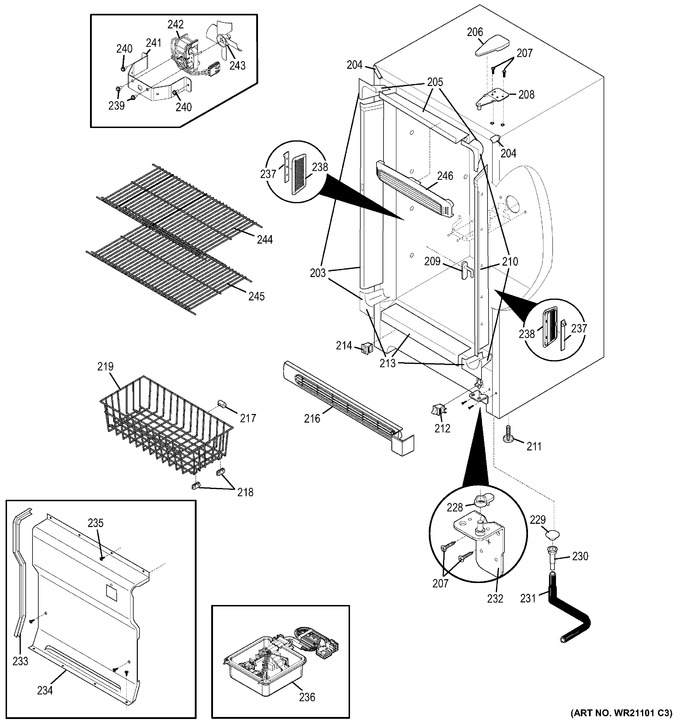

SELECT A DIAGRAM

1 - Door


2 - Cabinet


3 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
203	WR40X23511		Breaker		Appelez-nous	-
204	297273904		Trim-cabinet Corner, Whi   (Replaces: WR02X13348)				$ 7.59
205	WR40X23513		Breaker,top		Appelez-nous	-
206	WR02X12689		Cover-hinge		Appelez-nous	-
207	WR01X10997		Screw Bottom Hinge		Appelez-nous	-
208	297283803		Hinge-upper   (Replaces: WR12X10963)			Immediately	$ 19.52
208	WR12X10891		Hinge-upper		Appelez-nous	-
209	WR02X11446		Stop-basket		Appelez-nous	-
210	WR40X23514		Breaker,u21 ,w/lock		Appelez-nous	-
211	WR2X9485		Foot Adj.		Appelez-nous	-
212	WR23X10303		Switch Light		Appelez-nous	-
213	WR40X23512		Breaker,bottom		Appelez-nous	-
214	297280400		Valve, Breather   (Replaces: WR86X10064)				$ 10.13
217	WR2X6361		Bumper		Appelez-nous	-
218	WR2X6808		Glide		Appelez-nous	-
218	WR02X11444		Glide-basket		Appelez-nous	-
218	WR02X23530		Glide-basket		Appelez-nous	-
219	WR74X24021		Grille/kickplate		Appelez-nous	-
228	WR02X23543		Ramp,door Closer		Appelez-nous	-
229	WR01X10031		Plug-drain		Appelez-nous	-
230	WR17X23526		Drain		Appelez-nous	-
231	WR17X4120		Hose-drain 17 50"		Appelez-nous	-
232	WR12X23534		Hinge,1/2" Pin ,bottom R		Appelez-nous	-
233	WR14X10293		Gasket-evap Cover		Appelez-nous	-
234	WR17X12665		Cover-evaporator		Appelez-nous	-
235	WR01X10958		Screw, 8-18ab X.470 Qx"		Appelez-nous	-
236	WR09X24018		Control Board,assembly ,		Appelez-nous	-
237	WR23X24025		Light Board,3 Led Cluste		Appelez-nous	-
238	WR23X24024		Lens,3 Led Cluster		Appelez-nous	-
239	WR01X10798		Screw,hex Washer Head ,8		Appelez-nous	-
240	WR01X10915		Screw, #8, 18x.63, Self		Appelez-nous	-
241	WR2X9496		Bracket Fan		Appelez-nous	-
241	WR2X9496		Bracket Fan Motor		Appelez-nous	-
242	WR60X10293		Motor,fan ,115 V				$ 188.50
243	WR60X24020		Fan Blade		Appelez-nous	-
244	WR71X24032		Shelf,16.69 X 23.88 ,wir		Appelez-nous	-
245	WR71X24033		Shelf,16.69 X 23.88 ,wir		Appelez-nous	-
246	WR17X12658		Baffle, Air		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
