SELECT A DIAGRAM

10 - Machine Compartment


1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Quick Chill


9 - Case Parts

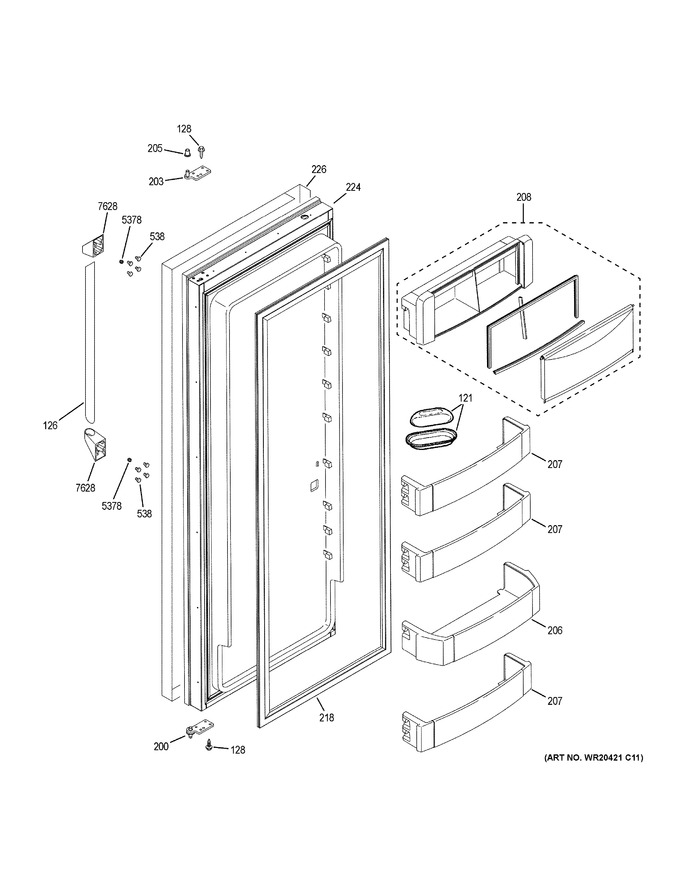

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
121	WR19X10005		Butter Dish And Cover		Appelez-nous	-
126	WR12X20950		Handle Ss		Appelez-nous	-
128	WR01X21024		Screw, 1/4-20 Tt Bht .87		Appelez-nous	-
200	WR13X10657		Hinge Door Btm		Appelez-nous	-
203	WR13X25052		Hinge Asm Door Top Rh		Appelez-nous	-
205	WG03A00012		Bushing Hinge Top   (Replaces: WR02X10954)				$ 49.33
206	WR71X25589		Bin Asm Gallon 42		Appelez-nous	-
207	WR71X25603		Bin Door Asm 42		Appelez-nous	-
208	WR71X26790		Dairy Bin Door Asm 42		Appelez-nous	-
218	WG03A04708		Gasket Door   (Replaces: WR24X10205)				$ 162.77
224	WR78X23165		Door Foamed Asm Ff Sxs 42"		Appelez-nous	-
226	WR78X27017		42" Pro Door Wrap Ff		Appelez-nous	-
538	WR01X21110		Scr 1/4-20x.5 Hex Cap Ss		Appelez-nous	-
5378	WR01A00759		Set Screw   (Replaces: WR02X11769)				$ 22.23
7628	WR02X26879		Handle Cap End		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
