SELECT A DIAGRAM

10 - Machine Compartment


1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Quick Chill


9 - Case Parts

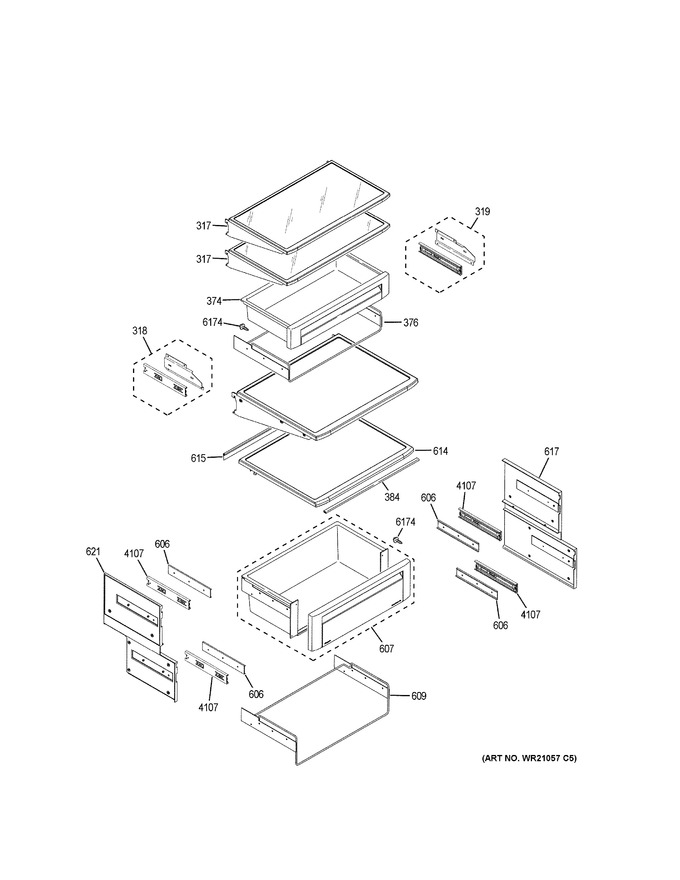

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
317	WR32X26802		Shelf Ff 42		Appelez-nous	-
374	WR32X25591		Pan Snack Asm 42		Appelez-nous	-
376	WR02X12854		Snack Pan Wire Spt 42		Appelez-nous	-
384	WR40X10040		Seal Pan Front		Appelez-nous	-
606	WR72X10369		Slide Inner		Appelez-nous	-
607	WR32X25926		Pan Veg Asm 42"		Appelez-nous	-
609	WR72X10249		Veg Pan Wire Support		Appelez-nous	-
614	WR32X26811		Ff Shelf Led 42		Appelez-nous	-
615	WR02X12849		Pan Rear Seal 42		Appelez-nous	-
617	WR72X10329		Pan Side Support Rh		Appelez-nous	-
621	WR72X10330		Pan Side Support Lh		Appelez-nous	-
4107	WG03L00743		Slide Outer   (Replaces: WR72X10366)				$ 61.96
6174	WR01X10449		Screw 6x1/2 Pan Phil H/l		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
