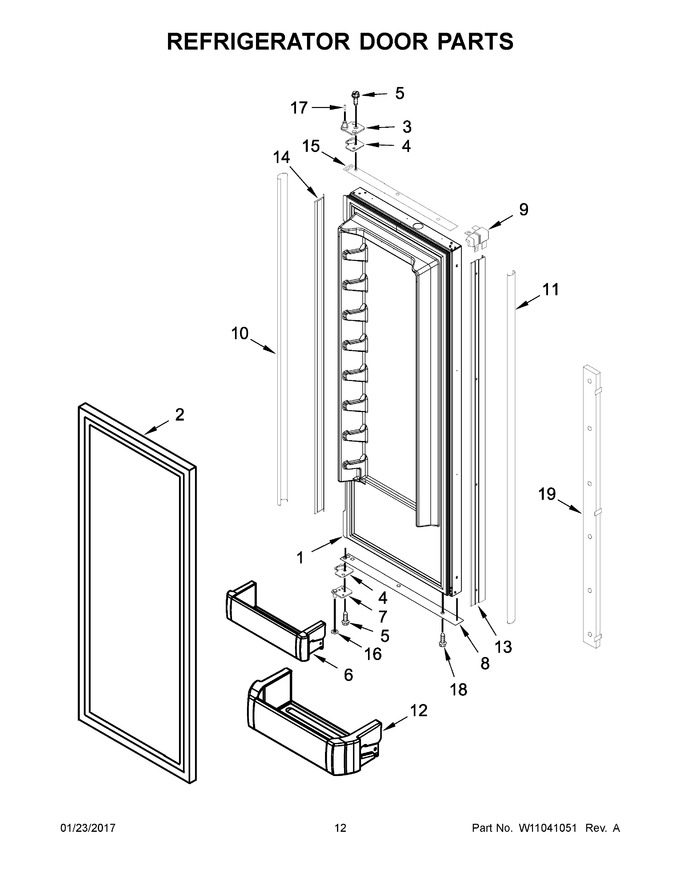

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10651466		Door, Refrigerator (left Hand)		Appelez-nous	-
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 306.08
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
6	W10529449		Bin, Door				$ 261.02
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 38.84
8	W10570040		Trim, Door (bottom)		Appelez-nous	-
9	2207457		Trim, Corner				$ 54.40
10	2266942S		Cover, Trim (hinge Side)				$ 97.89
11	2209084S		Cover, Trim (handle Side)				$ 130.22
12	W10578289		Bin, Gallon Door				$ 289.02
13	2314030S		Trim, Door (handle Side)				$ 265.73
14	2309031S		Trim, Door (hinge Side)				$ 383.27
15	W10570038		Trim, Door (top)		Appelez-nous	-
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.20
17	W11500952		Bushing, Door Stop   (Replaces: 2316760)			Immediately	$ 33.09
18	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
19	W11590867		Assembly, Mullion   (Replaces: W10732105)				$ 145.57
1A	W11797617		Door, Refrigerator (right Hand)   (Replaces: W10651470)		Appelez-nous	-
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 38.89
