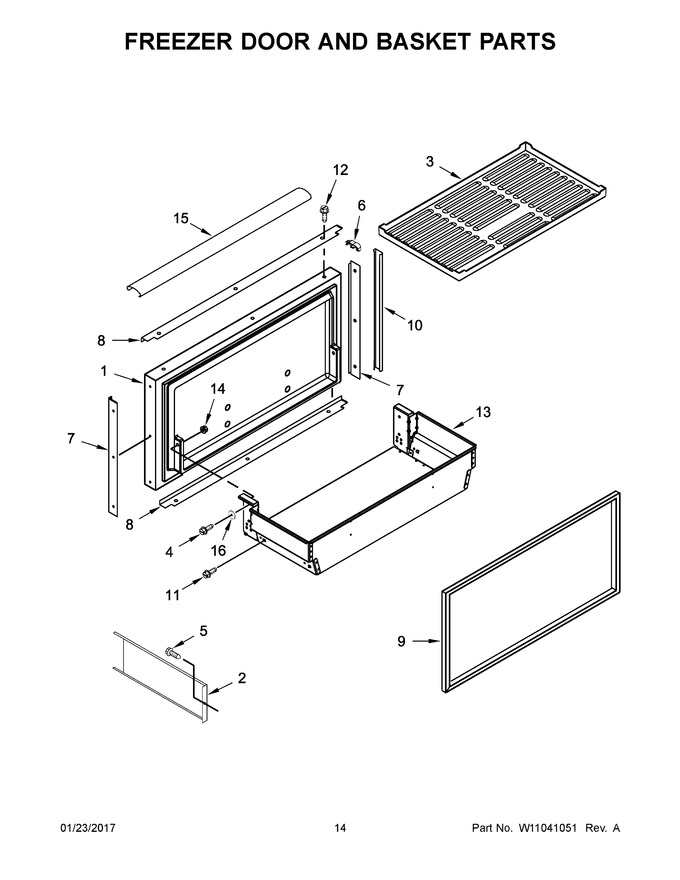

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827065 | Door, Freezer (Replaces: W10562030) |
|
- | |||||
| 2 | W10600711 | Divider, Basket |
|
- | |||||
| 3 | W10665412 | Mat, Basket |
|
- | |||||
| 4 | W10761334 | Screw |
|
$ 12.31 | |||||
| 5 | WP488234 | Screw (Replaces: W10135792) |
|
$ 6.74 | |||||
| 6 | 2258903 | Cap, Door Corner |
|
$ 194.73 | |||||
| 7 | W10780423 | Trim, Door (side) |
|
- | |||||
| 8 | W10780421 | Trim, Door (top And Bottom) |
|
- | |||||
| 9 | W11625085 | Gasket, Door (grey) (Replaces: W10609687) |
|
Immediately | $ 304.17 | ||||
| 10 | 2006324 | Cover, Trim (side) |
|
$ 28.78 | |||||
| 11 | W10109030 | Screw |
|
$ 14.62 | |||||
| 12 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.88 | |||||
| 13 | W10774208 | Assembly, Freezer Basket |
|
$ 421.83 | |||||
| 14 | W10771111 | Nut |
|
Immediately | $ 18.72 | ||||
| 15 | 2006329 | Cover, Trim (handle) |
|
$ 91.40 | |||||
| 16 | W10001190 | Washer |
|
$ 8.38 |
