Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11827065 Door, Freezer   (Replaces: W10562030) Appelez-nous -
2 W10600711 Divider, Basket Appelez-nous -
3 W10665412 Mat, Basket Appelez-nous -
4 W10761334 Screw Special Order $ 13.00

5 WP488234 Screw   (Replaces: W10135792) Special Order $ 7.08

6 2207457 Trim, Corner Special Order $ 57.12

7 2309477 Trim, Door (side) Special Order $ 220.55

8 2309478 Trim, Door Special Order $ 187.20

9 W11625085 Gasket, Door (grey)   (Replaces: W10609687) In-Stock Immediately $ 319.38

10 2006324 Cover, Trim (side) Special Order $ 30.22

11 WP8281250 Screw (stainless)   (Replaces: 8281250) Special Order $ 11.42

12 W10774208 Assembly, Freezer Basket Special Order $ 442.92

13 W10771111 Nut In-Stock Immediately $ 20.25

14 W10109030 Screw Special Order $ 15.35

15 2006329 Cover, Trim (handle) Special Order $ 95.97

16 W10001190 Washer Special Order $ 8.80

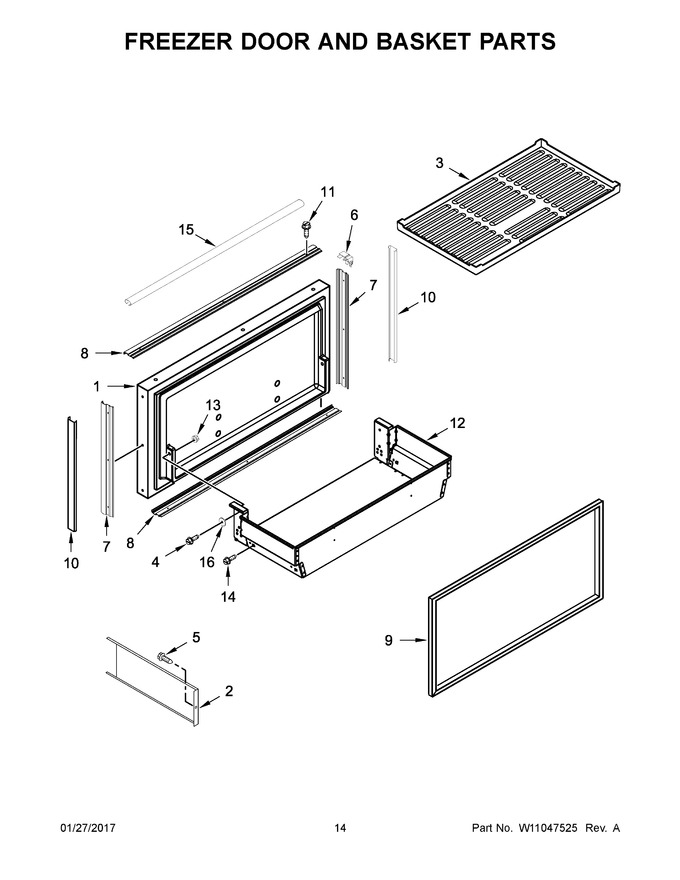

    View Diagram in Separate Window     Print Icon   Print Part List
