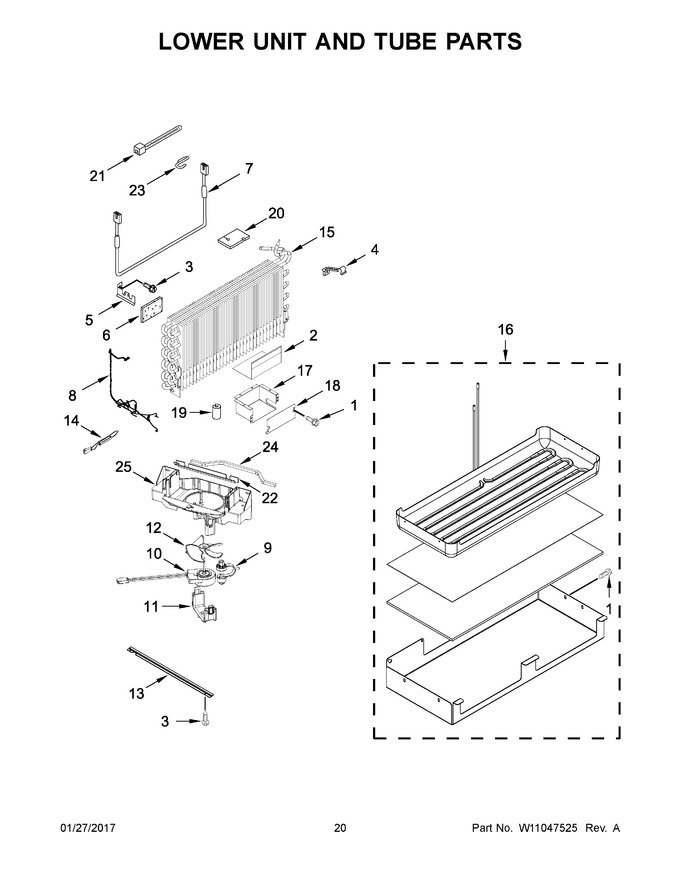

11 - Lower Unit And Tube Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
2	W10321050		Shelf, Wiring Cover		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2307944		Clip, Evaporator Heater		Appelez-nous	-
5	2307945		Bracket, Evaporator Heater Mounting		Appelez-nous	-
6	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 14.07
7	W10524056		Heater, Defrost				$ 148.00
8	NI		Assembly, Freezer Wire (not Serviced)		Appelez-nous	-
9	W11676465		Grommet, Fan Motor   (Replaces: 12951101)			Immediately	$ 14.82
10	W11396715		Motor, Fan   (Replaces: W10556724)				$ 208.52
11	W11712696		Clip, Fan Motor   (Replaces: 12956601)			Immediately	$ 11.66
12	WP2163777		Blade, Fan   (Replaces: 2200509)			Immediately	$ 66.15
13	2320554		Support, Drain Pan		Appelez-nous	-
14	W10602825		Assembly, Fuse Jumper Wire				$ 43.00
15	W10915406		Assembly, Evaporator   (Replaces: W10524054)			Immediately	$ 350.72
16	W10890886		Assembly, Drain Pan   (Replaces: W10735008)			Immediately	$ 353.79
17	W11756952		Cover, Wire Box   (Replaces: W10321048)		Appelez-nous	-
18	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 77.64
19	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.70
20	2306180		Block, Evaporator Water Filter   (Replaces: W10703410)		Appelez-nous	-
21	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.90
22	W10567169		Diverter, Air Shroud		Appelez-nous	-
23	2317920		Clip, Defrost Heater		Appelez-nous	-
24	W10762685		Gasket		Appelez-nous	-
25	W10803566		Shroud, Evaporator Fan		Appelez-nous	-
