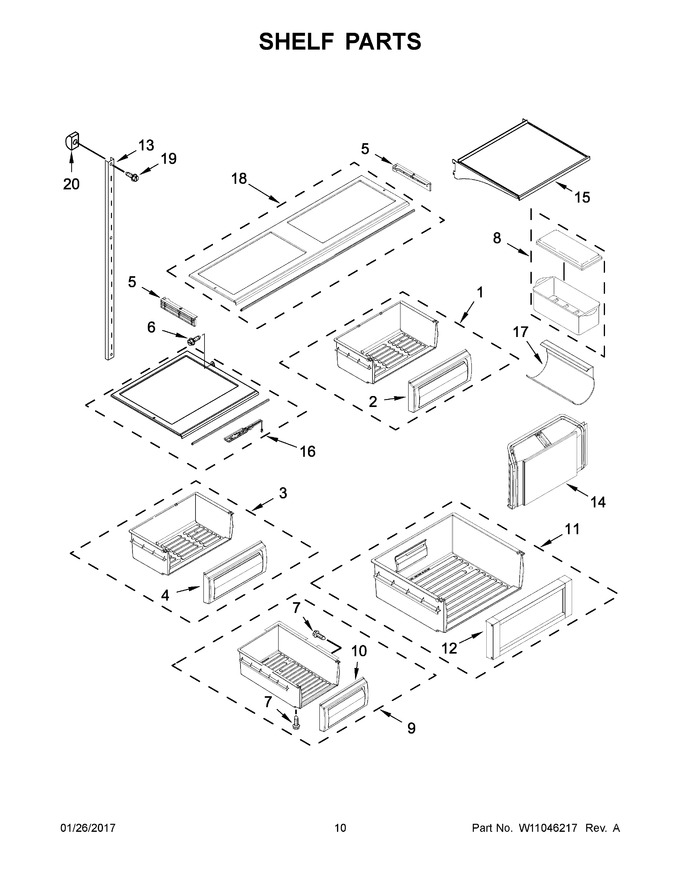

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10758318		Assembly, Crisper Pan		Appelez-nous	-
2	W10707772		Assembly, Crisper Pan Front		Appelez-nous	-
3	W10758321		Assembly, Deli Pan		Appelez-nous	-
4	W10707765		Assembly, Deli Pan Front		Appelez-nous	-
5	W10711391		Support, Crisper Cover Left Hand (white)		Appelez-nous	-
6	W10825422		Screw (white)   (Replaces: 8281251)				$ 11.36
7	WP488787		Screw   (Replaces: 488886)				$ 11.26
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 25.79
9	W10733946		Assembly, Ice Pan				$ 300.38
10	2306175		Assembly, Ice Pan Front				$ 95.96
11	2327511		Assembly, Freezer Pan		Appelez-nous	-
12	WP2256367		Assembly, Pan Front   (Replaces: 2256367)				$ 182.76
13	W10661519		Ladder, Shelf Side (white)		Appelez-nous	-
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	WPW10568583		Assembly, Shelf (fixed)   (Replaces: W10708363)				$ 407.75
16	WPW10707766		Cover, Deli Bin (left Hand)   (Replaces: W10707766)				$ 347.29
17	W10701859		Rack, Wine				$ 21.53
18	WPW10708355		Cover, Crisper   (Replaces: W10708355)				$ 306.41
19	W10808292		Screw		Appelez-nous	-
20	520965		Support, Ladder				$ 31.35
13A	W10661520		Ladder, Shelf Center (white)		Appelez-nous	-
16A	WPW10570404		Cover, Deli Bin (right Hand)   (Replaces: W10707767)				$ 297.59
5A	W10711390		Support, Crisper Cover Right Hand (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
