SELECT A DIAGRAM
New Model Search:

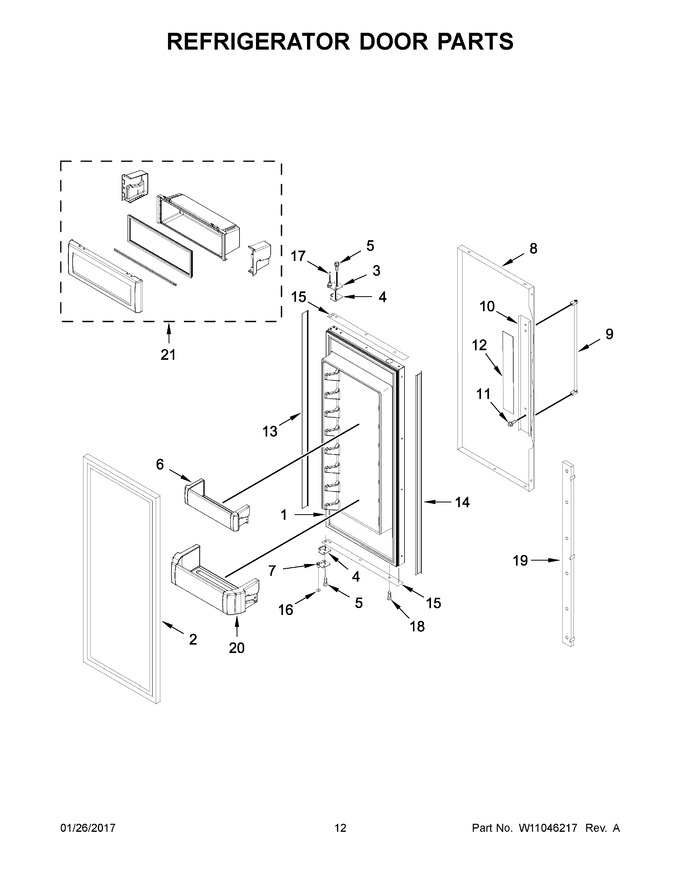

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10854246 | Door, Refrigerator (left Hand) (Replaces: W10796465) |
|
$ 1,504.96 | |||||
| 2 | W10600741 | Gasket, Door (grey) |
|
$ 228.32 | |||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.02 | ||||
| 6 | W10323598 | Bin, Door |
|
$ 99.80 | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 38.84 | |||||
| 8 | W11797627 | Skin, Door (stainless) (Replaces: W10541583) |
|
- | |||||
| 9 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 206.39 | |||||
| 10 | W10127710 | Plate, Handle Door |
|
Immediately | $ 24.70 | ||||
| 11 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.76 | ||||
| 12 | 2309218 | Filler, Foam |
|
- | |||||
| 13 | W10600734 | Spacer, Door Edge (hinge Side) |
|
$ 283.01 | |||||
| 14 | W10600736 | Spacer, Door Edge (handle Side) |
|
$ 289.20 | |||||
| 15 | W10600732 | Spacer, Door (top/bottom) |
|
$ 160.93 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.20 | ||||
| 17 | W11500952 | Bushing, Door Stop (Replaces: 2316760) |
|
Immediately | $ 33.09 | ||||
| 18 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.88 | |||||
| 19 | W10732110 | Assembly, Mullion |
|
$ 277.43 | |||||
| 20 | W10323746 | Bin, Gallon Door |
|
$ 103.09 | |||||
| 21 | W10323045 | Assembly, Utility Bin |
|
Immediately | $ 304.80 | ||||
| 1A | W10707770 | Door, Refrigerator (right Hand) |
|
- | |||||
| 7A | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 38.89 |
