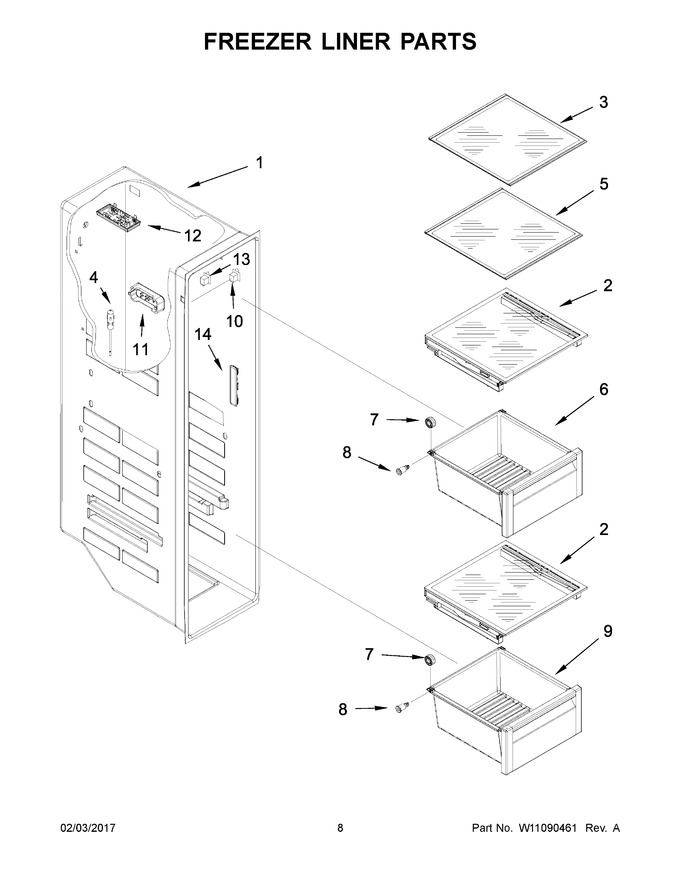

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10836801		Assembly, Cover   (Replaces: W10527863)				$ 192.37
3	W11098698		Shelf, Glass Upper   (Replaces: W10794052)		Appelez-nous	-
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W11098699		Shelf, Glass Lower   (Replaces: W10794053)				$ 227.34
6	W10701444		Freezer Pan, Middle		Appelez-nous	-
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
9	W10701446		Freezer Pan, Lower		Appelez-nous	-
10	W11457217		Switch, Rocker Arm (freezer)   (Replaces: 1115373)				$ 40.09
11	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
12	W10727376		Lighting, Led		Appelez-nous	-
13	W11123943		Switch, Rocker Arm   (Replaces: W10656772)				$ 36.66
14	W10876365		Lighting, Led-strip   (Replaces: W10826780)			Immediately	$ 94.76
