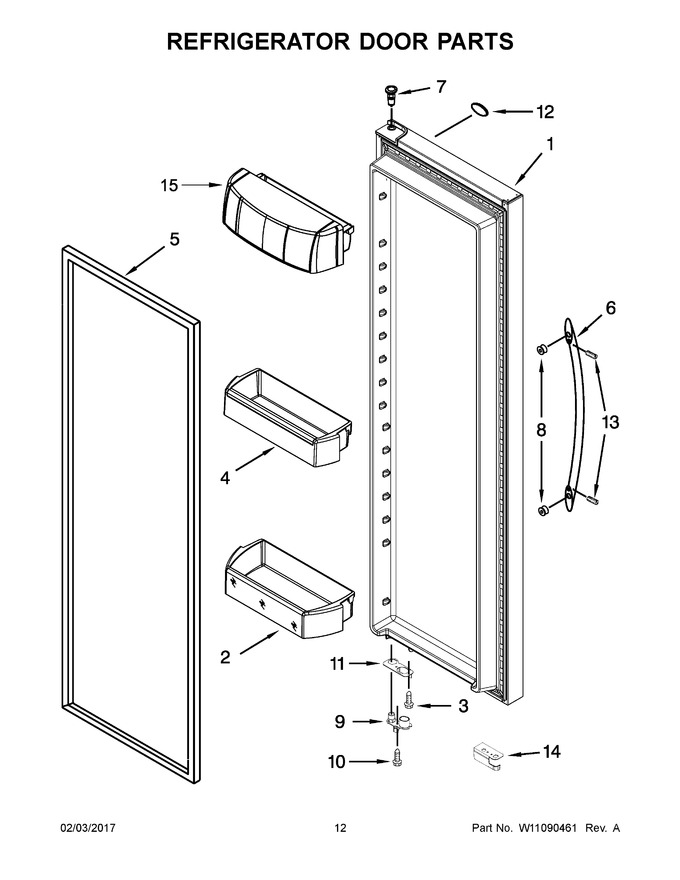

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11045217		Door, Refrigerator (includes Item 5) (white)   (Replaces: W11045217)		Appelez-nous	-
2	WPW10527272		Door Bin, Gallon   (Replaces: W10527272)				$ 83.80
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	WPW10308388		Door Bin, Shallow   (Replaces: W10308388)				$ 77.97
5	WPW10247884		Gasket, Door (beige)   (Replaces: W10247884)				$ 322.97
6	W10899551		Handle (stainless)   (Replaces: W10678291)			Immediately	$ 188.82
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
8	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
9	WPW10248011		Closer, Upper Cam Door (white)   (Replaces: W10248011)				$ 12.93
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop   (Replaces: W10888898)				$ 80.24
12	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 80.84
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
14	W10789144		Cover, Door Stop (white)				$ 19.38
15	WPW10324760		Door, Compartment Assembly   (Replaces: W10324760)				$ 85.60
12A	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 79.55
14A	W10789145		Cover, Door Stop (black)				$ 19.37
14B	W11661847		Cover, Door Stop (grey)   (Replaces: W10789147)			Immediately	$ 31.71
1A	LW10750036		Door, Refrigerator (includes Item 5) (black)   (Replaces: W10750036)		Appelez-nous	-
1B	LW10637748		Door, Refrigerator (includes Item 5) (stainless)   (Replaces: W10644353)				$ 725.90
5A	WPW10249912		Gasket, Door (black)   (Replaces: W10249912)				$ 329.18
5B	W10355582		Gasket, Door (grey)   (Replaces: W10249916)				$ 341.26
9A	WPW10257201		Closer, Upper Cam Door (black)   (Replaces: W10257201)				$ 12.93
9B	WPW10257203		Closer, Upper Cam Door (grey)   (Replaces: W10257203)				$ 12.96
