SELECT A DIAGRAM

02 - Interior


03 - Cch12aek, Cch12ask


04 - Cch12aek, Cch12ask


05 - Cch12wek, Cch12wsk


06 - Cch12wek, Cch12wsk


07 - Pump


08 - Cabinet


09 - Hood And Back , Lit/optional

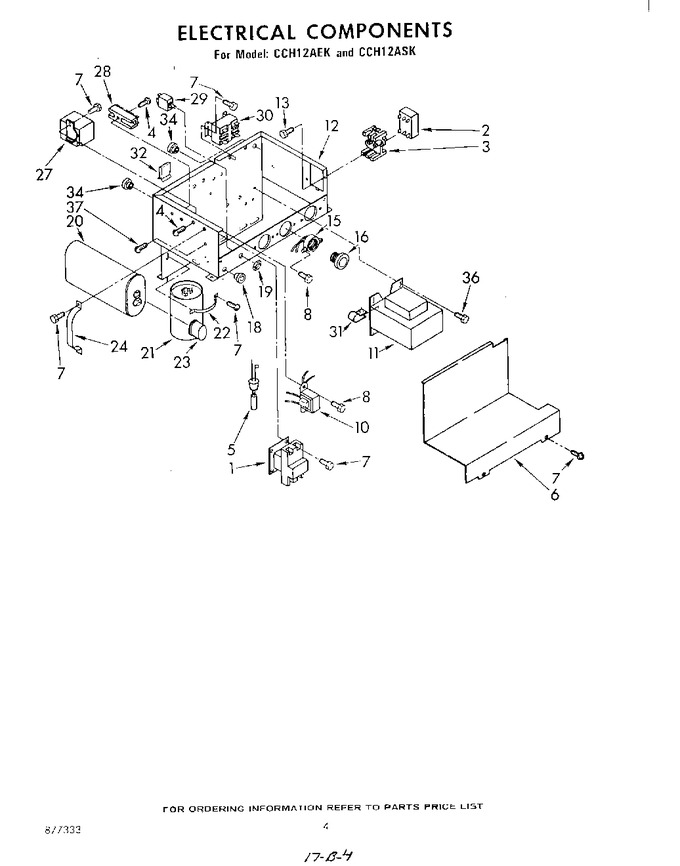

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	751134		Contactor		Appelez-nous	-
2	756231		Relay, Holding		Appelez-nous	-
3	751333		Base, Relay		Appelez-nous	-
4	680603		Screw, 8-32 X 5/8		Appelez-nous	-
5	756692		Protector, Thermal		Appelez-nous	-
6	757273		Cover, Electrical Box		Appelez-nous	-
7	WP90767		Screw, 8-32 X 3/8 (10)   (Replaces: 681167)			Immediately	$ 8.25
8	595154		Screw, 10-32 X 1/2 (7)		Appelez-nous	-
10	587314		Transformer, Control (14v)		Appelez-nous	-
11	757837		Transformer, Grid (20v)		Appelez-nous	-
13	681528		Screw, 10-32 X 5/8 (3)		Appelez-nous	-
15	596697		Receptacle, Fustat (3)		Appelez-nous	-
16	596683		Fustat, 8 Amp (3)		Appelez-nous	-
18	596416		Bushing, Snap (2)		Appelez-nous	-
19	596021		Nut (2)		Appelez-nous	-
20	756820		Capacitor, Run		Appelez-nous	-
21	756819		Capacitor, Start		Appelez-nous	-
22	756821		Clamp, Capacitor Start		Appelez-nous	-
23	751239		Cover, Capacitor		Appelez-nous	-
24	751227		Clamp, Capacitor Run		Appelez-nous	-
27	756916		Relay, Compressor Start		Appelez-nous	-
28	751127		Board, Terminal		Appelez-nous	-
29	560940		Switch, Service		Appelez-nous	-
30	583099		Relay, Slab Completion		Appelez-nous	-
31	596679		Clamp, Wire		Appelez-nous	-
32	681503		Clip		Appelez-nous	-
34	596380		Snap Bushing (2)		Appelez-nous	-
36	WP999367		Screw (4)   (Replaces: 681620)				$ 8.56
37	WP488787		Screw, 8-18 X 3/8   (Replaces: 680968)				$ 11.26

    View Diagram in Separate Window       Print Part List
