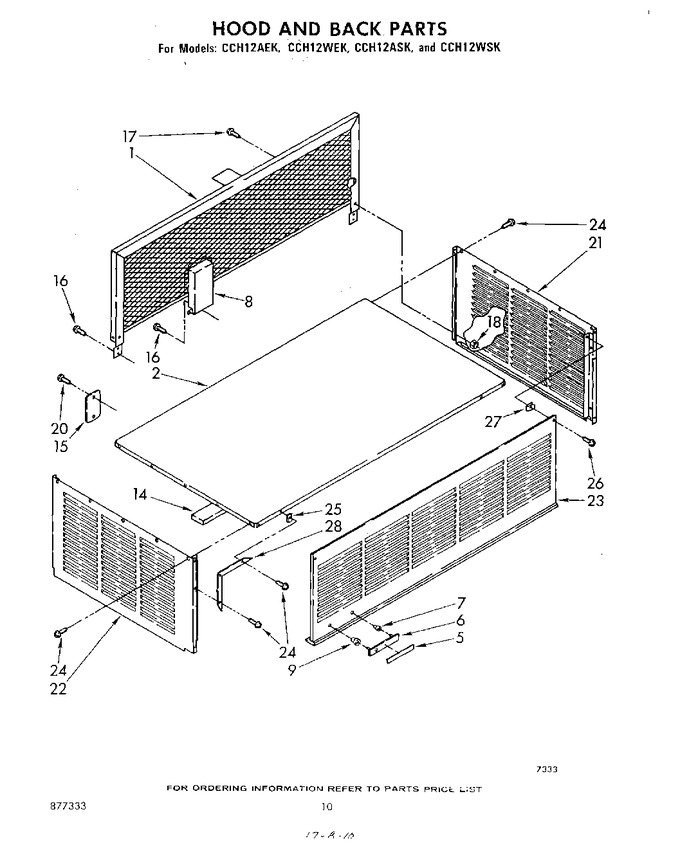

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 756748 | Panel, Back (cch12wek) |
|
- | |||||
| 1 | 756746 | Panel, Back (cch12ask) |
|
- | |||||
| 1 | 756749 | Panel, Back (cch12wsk) |
|
- | |||||
| 1 | 756745 | Panel, Back (cch12aek) |
|
- | |||||
| 2 | 757162 | Top, Hood (cch12ask Cch12wsk (includes Item 14)) |
|
- | |||||
| 2 | 757160 | Top, Hood (cch12aek Cch12wek (includes Item 14)) |
|
- | |||||
| 5 | 598569 | Insert, Nameplate |
|
- | |||||
| 6 | 837577 | Escutcheon, Nameplate |
|
- | |||||
| 7 | 654068 | Clip, Small |
|
- | |||||
| 9 | 654067 | Clip, Large |
|
- | |||||
| 14 | 751636 | Gasket, Hood |
|
- | |||||
| 15 | 616016 | Cover, Junction Box |
|
- | |||||
| 16 | WP488787 | Screw, 8-32 X 3/4 (Replaces: 681299) |
|
$ 11.26 | |||||
| 17 | 680933 | Screw, 10-32 X 1/2 |
|
- | |||||
| 18 | WP488826 | Nut (Replaces: 487735) |
|
$ 6.53 | |||||
| 20 | 681187 | Screw, 10 - 32 X 3/8 |
|
- | |||||
| 21 | 757076 | Panel, Hood R.s. (cch12ask Cch12wsk) |
|
- | |||||
| 21 | 757077 | Panel, Hood R.s. (cch12aek Cch12wek) |
|
- | |||||
| 22 | 757072 | Panel, Hood L.s. (cch12aek Cch12wek) |
|
- | |||||
| 22 | 757071 | Panel, Hood L.s. (cch12ask Cch12wsk) |
|
- | |||||
| 23 | 757082 | Panel, Hood Front (cch12aek Cch12wek) |
|
- | |||||
| 23 | 757081 | Panel, Hood Front (cch12ask Cch12wsk) |
|
- | |||||
| 24 | WP965173 | Screw (Replaces: 681590) |
|
Immediately | $ 11.87 | ||||
| 25 | 681680 | Nut, No.10 ``u`` Spring |
|
- | |||||
| 26 | 681618 | Screw |
|
- | |||||
| 27 | 681626 | Pushnut |
|
- | |||||
| 28 | 877333 | List, Parts |
|
- | |||||
| 28 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 28 | WP285432 | Terminal Spade (Replaces: 509882) |
|
$ 8.16 | |||||
| 28 | 569096 | Compound, Caulking (cartridge) |
|
- | |||||
| 28 | 757214 | Manual, Owner`s |
|
- | |||||
| 28 | 757213 | Instructions, Installation |
|
- | |||||
| 28 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 28 | 757089 | Gusset (4) |
|
- | |||||
| 28 | 598953 | Enamel, Beaumont Beige (1/2 Pt. Touch-up) |
|
- | |||||
| 28 | 598954 | Enamel, Burnt Sienna (1/2 Pt. Touch-up) |
|
- | |||||
| 28 | 583651 | Gasket (set) |
|
- | |||||
| 28 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 96.42 | ||||
| 28 | 606755 | Bag, Insulation (10-1/2`` X 60``) (Replaces: 505398) |
|
$ 82.37 | |||||
| 28 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 243.14 | |||||
| 28 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 28 | 45571 | Terminal, Flag |
|
- | |||||
| 28 | 596174 | Terminal, Piggy Back |
|
- | |||||
| 978931 | Xenamel, Beaumont Beige (13 Oz. Spray Can) |
|
- | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 799339) |
|
$ 59.89 | ||||||
| 978932 | Xenamel, Burnt Sienna (13 Oz. Spray Can) |
|
- |
