SELECT A DIAGRAM

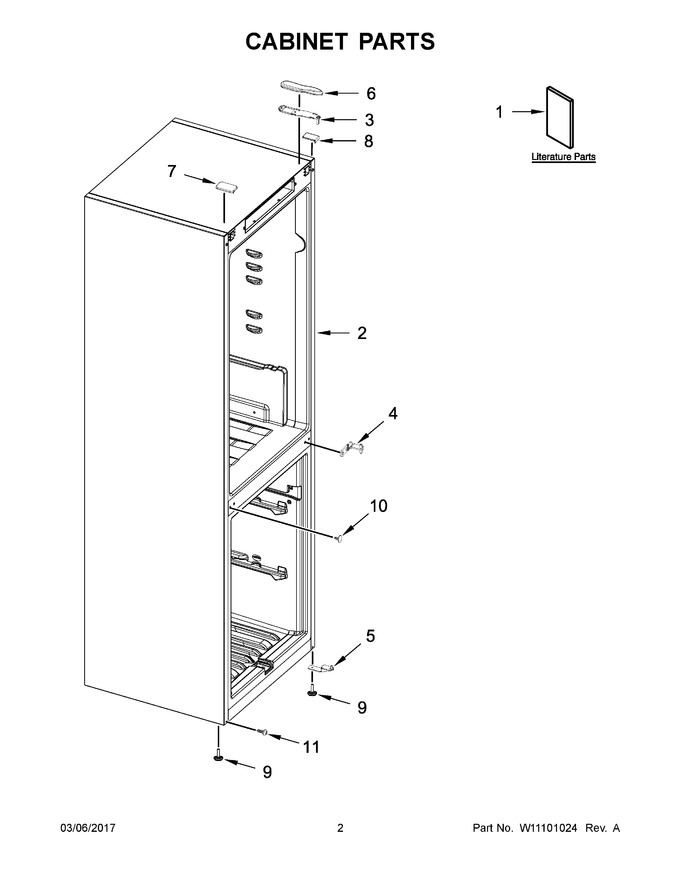

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11036835		Use And Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	W10731172		Hinge, Upper				$ 73.26
4	W10737284		Hinge, Center			Immediately	$ 71.45
5	W10720304		Hinge, Bottom				$ 73.57
6	W10746882		Cover, Hinge (grey)				$ 17.45
7	W10747990		Cover, Connector Box (grey)			Immediately	$ 92.36
8	W10747036		Cover, Corner Left Hand (grey)			Immediately	$ 91.95
9	W10843037		Foot			Immediately	$ 17.72
10	W11677724		Plug, Hinge Hole Center (white)   (Replaces: W10845805)				$ 13.46
11	W11027629		Screw (grey)				$ 11.71
10A	W10568482		Plug, Hinge Hole Bottom (white)		Appelez-nous	-
1A	W10813791		Tech Sheet		Appelez-nous	-
8A	W11757076		Cover, Corner Right Hand (grey)   (Replaces: W10747031)				$ 20.41
NI	W10600779		Kit, Door Reversal				$ 15.01
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
