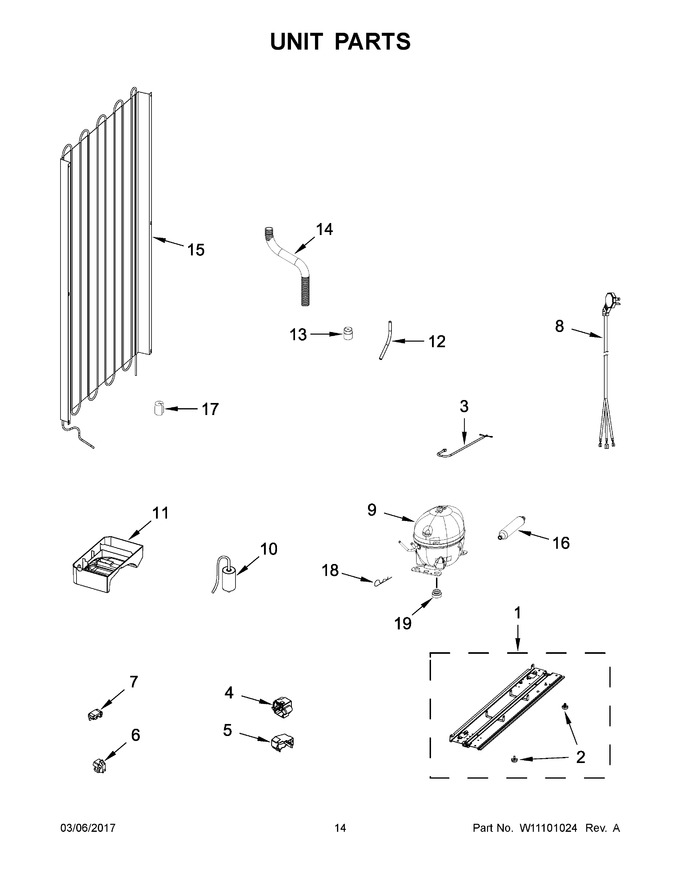

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10515903		Crossbar, Compressor				$ 23.21
2	W10443535		Foot, Rear			Immediately	$ 7.70
3	W10513341		Wire, Ground		Appelez-nous	-
4	W10540525		Board, Terminal		Appelez-nous	-
5	W10540495		Cover, Terminal Board				$ 23.94
6	W10540543		Relay				$ 81.80
7	WP2214067		Protector, Motor   (Replaces: W10540536)				$ 124.42
8	W10505066		Cord, Power				$ 109.22
9	W11710117		Compressor   (Replaces: W10540349)				$ 591.54
10	W10538494		Capacitor				$ 74.00
11	W10553362		Tray, Water			Immediately	$ 78.59
12	N/P		Pipe, Filling (not A Serviceable Part)		Appelez-nous	-
13	W11757080		Valve, Drain   (Replaces: W10585788)				$ 25.57
14	W10843099		Pipe, Condensate			Immediately	$ 86.73
15	W10515625		Condenser				$ 238.79
16	W10843041		Drier		Appelez-nous	-
17	W10852641		Damper, Condenser		Appelez-nous	-
18	W11023659		Pin, Cotter		Appelez-nous	-
19	W10844574		Grommet, Compressor		Appelez-nous	-
NI	N/P		Refrigerant Charge 122g (r-134a)		Appelez-nous	-
