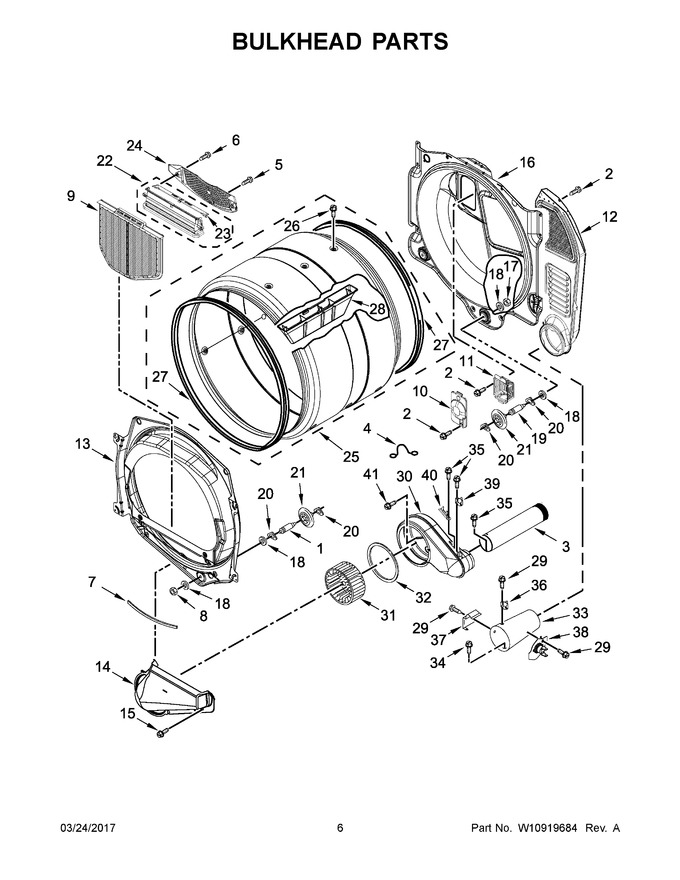

04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | WP8563728 | Pipe, Exhaust (Replaces: 8563728) |
|
$ 137.94 | |||||
| 4 | WP3401707 | Jumper, Wire (Replaces: 3401707) |
|
$ 82.47 | |||||
| 5 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 6 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | W10120998 | Lint Screen (white) (Replaces: W10596627) |
|
$ 67.16 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 11 | 8578825 | Bracket, Drum Light |
|
$ 20.88 | |||||
| 12 | W11168650 | Assembly, Air Duct (Replaces: W10865336) |
|
$ 97.66 | |||||
| 13 | 8565061 | Bulkhead, Front |
|
$ 241.54 | |||||
| 14 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 207.12 | |||||
| 15 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 16 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 339.45 | |||||
| 17 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | W11219327 | Assembly, Outlet Housing (Replaces: W10153423) |
|
$ 90.54 | |||||
| 23 | W11222846 | Door, Lint Screen (Replaces: W10153413) |
|
Immediately | $ 203.72 | ||||
| 24 | W11086603 | Grille, Outlet (Replaces: W10153412) |
|
Immediately | $ 35.14 | ||||
| 25 | W10865330 | Assembly, Drum (complete) |
|
$ 374.67 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 28 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 139.34 | |||||
| 29 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 30 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 101.70 | |||||
| 31 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 120.33 | ||||
| 32 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 33 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 176.47 | |||||
| 34 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 35 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 36 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 37 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 38 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 39 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 40 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 41 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 |
