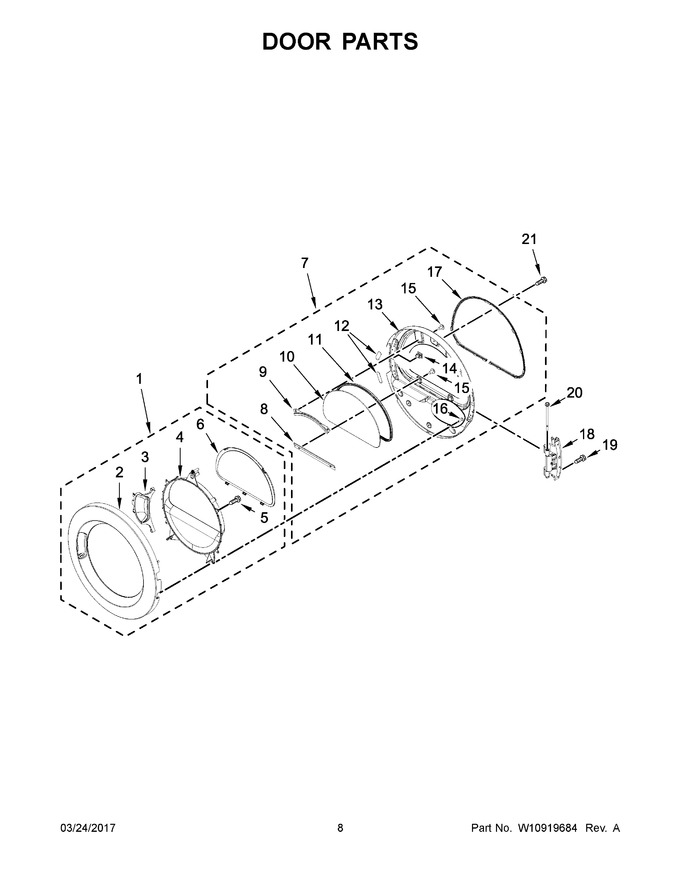

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10215753		Door, Outer (white)				$ 285.86
2	W10215742		Door, Outer Ring				$ 353.97
3	W10215754		Handle, Door				$ 85.95
4	W10283424		Door, Intermediate Stationary		Appelez-nous	-
5	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
6	W10215741		Screen, Door		Appelez-nous	-
7	W10564641		Assembly, Inner Door				$ 226.63
8	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
9	8519356		Retainer, Window (upper)		Appelez-nous	-
10	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
11	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
12	WPW10256915		Label-hinge Hole (white)   (Replaces: W10256915)				$ 82.07
13	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
16	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
17	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 87.42
18	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 232.48
19	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
20	8565087		Screw		Appelez-nous	-
21	W11116979		Screw   (Replaces: 8534044)				$ 13.76

    View Diagram in Separate Window       Print Part List
