Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11025376 Use And Care Guide Appelez-nous -
2 N/P Cabinet (not A Servicable Part) Appelez-nous -
3 W11820444 Assembly, Roller (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 37.35

4 B5759655 Gasket Special Order $ 13.03

5 W11684617 Cover, Water Valve   (Replaces: W10217701) Special Order $ 21.36

6 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 8.24

7 WP67006744 Pin, Center Hinge   (Replaces: 10351005) Special Order $ 8.68

8 WPM0274062 Shim (black)   (Replaces: M0274062) In-Stock Immediately $ 24.43

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

10 W11106366 Cover, Hinge (grey)   (Replaces: 12477601AP) Special Order $ 75.82

11 WP489349 Screw   (Replaces: 12990101) In-Stock Immediately $ 8.43

12 WP98165 Screw   (Replaces: 12990521) Special Order $ 8.57

13 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

14 WP489349 Screw   (Replaces: 12992403) In-Stock Immediately $ 8.43

15 W11689473 Hinge, Center (grey)   (Replaces: 12607103AP) Special Order $ 69.79

16 WP12566606ED Hinge, Top   (Replaces: 12566606ED) In-Stock Immediately $ 47.13

17 WP12587703AP Cover, Corner (grey)   (Replaces: 12587703AP) Special Order $ 8.07

18 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

19 W10210978 Cover, Unit Special Order $ 201.78

20 WPW10534165 Grille, Toe (grey)   (Replaces: W10534165) In-Stock Immediately $ 66.30

21 W10617441 Hinge, Bottom (grey) Special Order $ 20.95

22 67007018 Pin, Bottom Hinge   (Replaces: 10200802) In-Stock Immediately $ 8.62

23 WP67001098 Cover, Fill Tube   (Replaces: 12477501) Special Order $ 8.43

24 W11685757 Label, Fill Tube   (Replaces: 12249902) Special Order $ 7.41

1A W11043933 Energy Guide Appelez-nous -
1B W10517966 Tech Sheet Appelez-nous -
3A W11820445 Assembly, Roller (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 37.35


    View Diagram in Separate Window     Print Icon   Print Part List

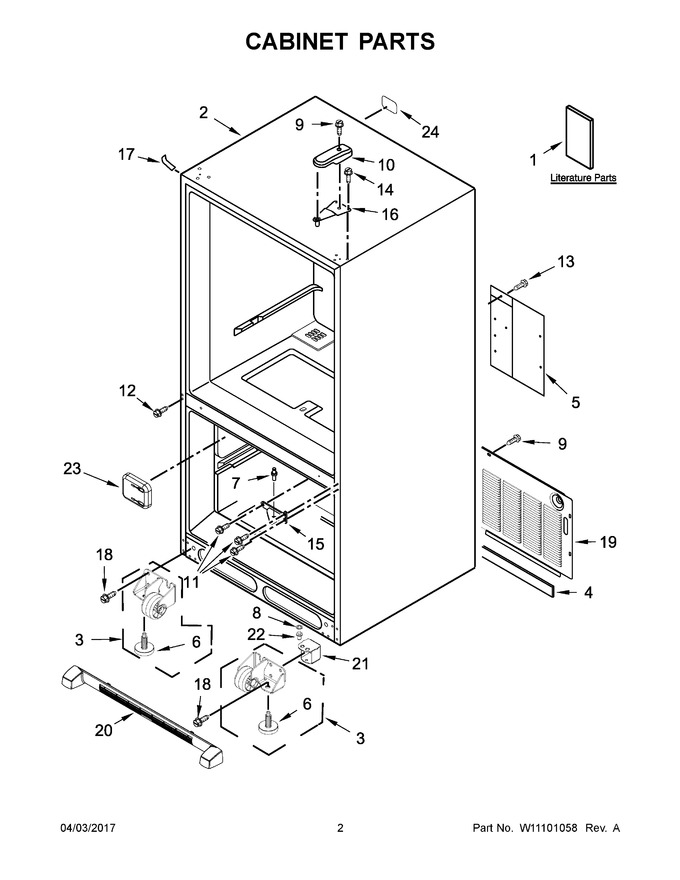

Diagram for IX3HHGXSS000
