SELECT A DIAGRAM
New Model Search:

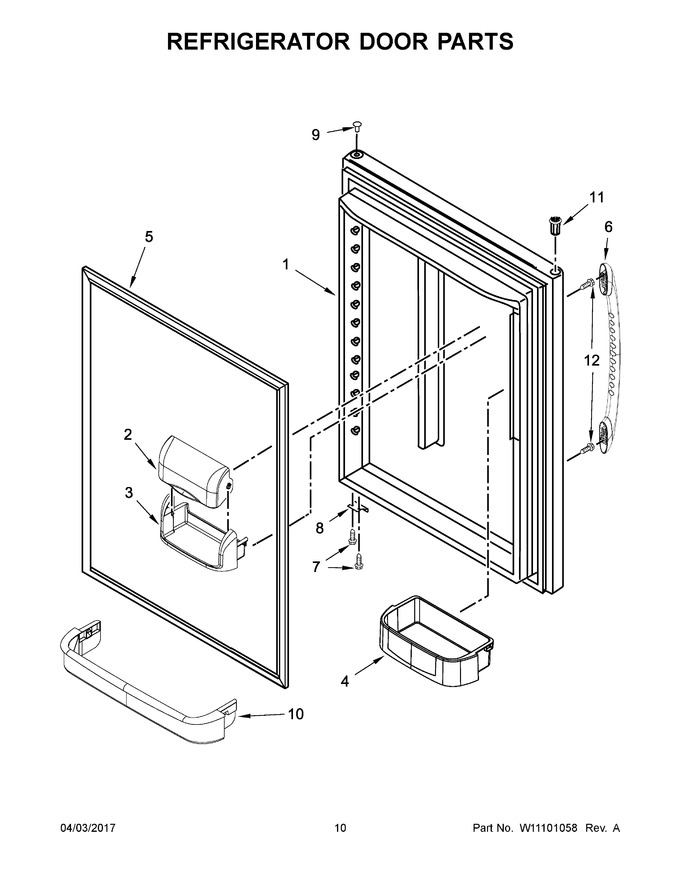

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107553SQ | Door, Refrigerator (stainless) (Replaces: 13107553S) |
|
$ 1,311.81 | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 4 | WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 84.95 | |||||
| 5 | W11676571 | Gasket, Door (grey) (Replaces: W10443310) |
|
$ 227.86 | |||||
| 6 | W11351147 | Handle, Door (stainless) (Replaces: W10223019) |
|
$ 198.22 | |||||
| 7 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 8 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 9 | WP12246610 | Plug, Button (grey) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 10 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 11 | 10961006AP | Bushing (grey) |
|
$ 9.65 | |||||
| 12 | W10267047 | Screw (Replaces: W10201588) |
|
$ 13.47 | |||||
| 4A | 67001141 | Bucket, Small (Replaces: 12557202) |
|
Immediately | $ 78.91 |
