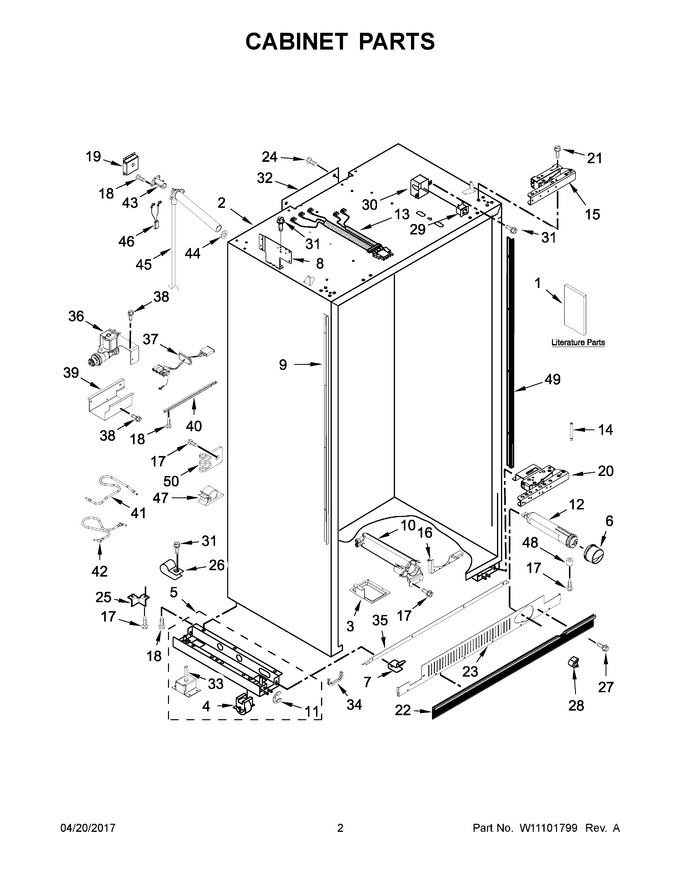

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Icemaker Parts


06 - Control Panel Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Top Grille And Unit Cover Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10779525		Use And Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860229		Assembly, Support Base (left Hand)   (Replaces: W10279275)				$ 381.83
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	W11042558		Support, Grille Left Hand (grey)				$ 95.20
9	W10611999		Trim, Side (left) (grey)			Immediately	$ 250.20
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 270.85
11	2006841		Ring, Retainer				$ 92.66
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	W10780215		Assembly, Light Switch Wire		Appelez-nous	-
14	W10234202		Pin, Door Stop				$ 91.73
15	W10691145		Hinge (top) Left Hand (grey)			Immediately	$ 472.48
16	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 80.33
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	W11624204		Screw   (Replaces: 486194)				$ 14.72
19	W10831026		Cover-heater, Fill Tube		Appelez-nous	-
20	W10691533		Hinge (bottom) Left Hand (grey)				$ 624.95
21	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
22	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 249.29
23	W11739148		Grille, Bottom (black)   (Replaces: W10182718)				$ 214.59
24	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
25	2006617		Bracket, Base Support (rear)		Appelez-nous	-
26	549193		Clamp, Power Cord				$ 14.06
27	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
28	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
29	W10606838		Switch, Light				$ 57.61
30	W10167387		Cover, Switch (left Hand)				$ 77.58
31	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
32	2215612		Cover, Air Duct		Appelez-nous	-
33	2005032		Leveler, Adjustable			Immediately	$ 200.07
34	2307584		Grommet, Crossover Tube				$ 23.40
35	W10740171		Trim, Top Grille				$ 186.09
36	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 253.66
37	W10279393		Assembly, Water Valve Wire				$ 157.07
38	00487294		Screw   (Replaces: 487294)				$ 175.09
39	W10129653		Shield, Valve Electrical		Appelez-nous	-
40	2320559		Support, Valve				$ 88.79
41	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 67.89
42	W11533506		Tube, Filter Outlet   (Replaces: W10683737)			Immediately	$ 33.15
43	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
44	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
45	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
46	W10482373		Assembly, Fill Tube Heater Wire				$ 125.10
47	W10663352		Clip				$ 21.91
48	2005433		Spacer				$ 23.33
49	W10612000		Trim, Side (right) (grey)				$ 248.70
50	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
15A	W11700299		Hinge (top) Right Hand (grey)   (Replaces: W10691136)			Immediately	$ 507.95
1A	W10785751		Energy Guide		Appelez-nous	-
1B	W10779523		Installation Instructions		Appelez-nous	-
1C	W10785746		Wiring Diagram		Appelez-nous	-
1D	W10910735		Tech Sheet (english)		Appelez-nous	-
1E	W10910738		Tech Sheet (french)		Appelez-nous	-
20A	W10691534		Hinge (bottom) Right Hand (grey)			Immediately	$ 655.24
30A	W10167341		Cover, Switch (right Hand)				$ 77.09
5A	W10860448		Assembly, Support Base (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
8A	W11042559		Support, Grille Right Hand (grey)				$ 97.28
