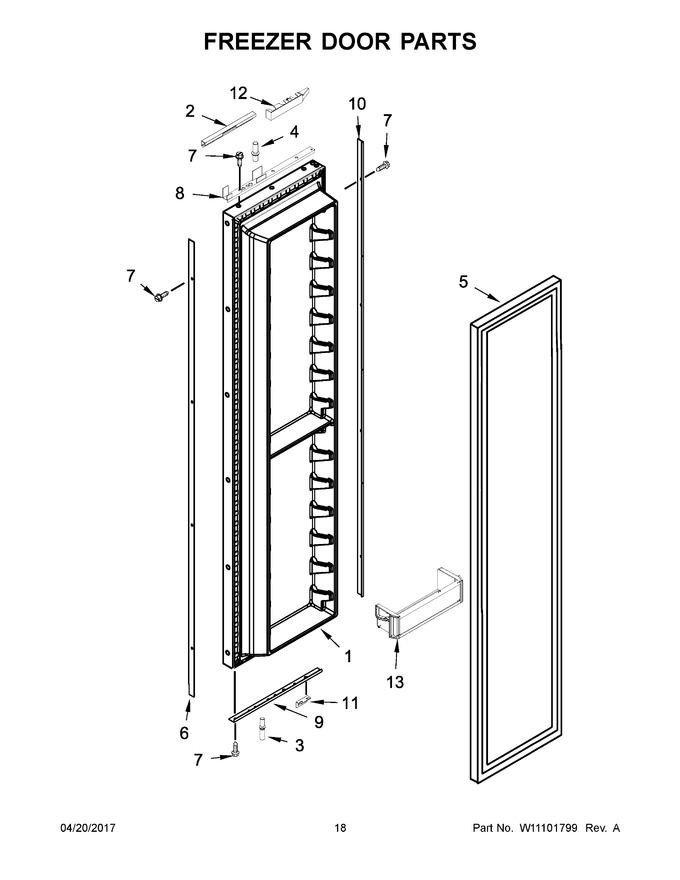

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11633028 | Door, Freezer (includes Item 5) (Replaces: W10783286) |
|
$ 1,523.76 | |||||
| 2 | W10775728 | Cover, Top Door |
|
$ 127.71 | |||||
| 3 | W11337869 | Pin, Bottom Door (Replaces: W10234206) |
|
$ 64.91 | |||||
| 4 | W10234194 | Pin, Top Door |
|
$ 15.89 | |||||
| 5 | W10800818 | Gasket, Door (black) (Replaces: W10749269) |
|
Immediately | $ 344.13 | ||||
| 6 | W10749306 | Trim, Handle Side Door (charcoal) |
|
$ 193.36 | |||||
| 7 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 8 | W10749275 | Trim, Top Door |
|
$ 197.01 | |||||
| 9 | W10749618 | Trim, Bottom Door |
|
$ 130.74 | |||||
| 10 | W10749614 | Trim, Hinge Side Door (charcoal) |
|
$ 204.51 | |||||
| 11 | W10606841 | Bracket, Panel Mounting (grey) |
|
$ 35.83 | |||||
| 12 | W10606813 | Insert, Arm Door Top (grey) |
|
$ 32.74 | |||||
| 13 | W10529451 | Bin, Shallow |
|
$ 350.71 |
