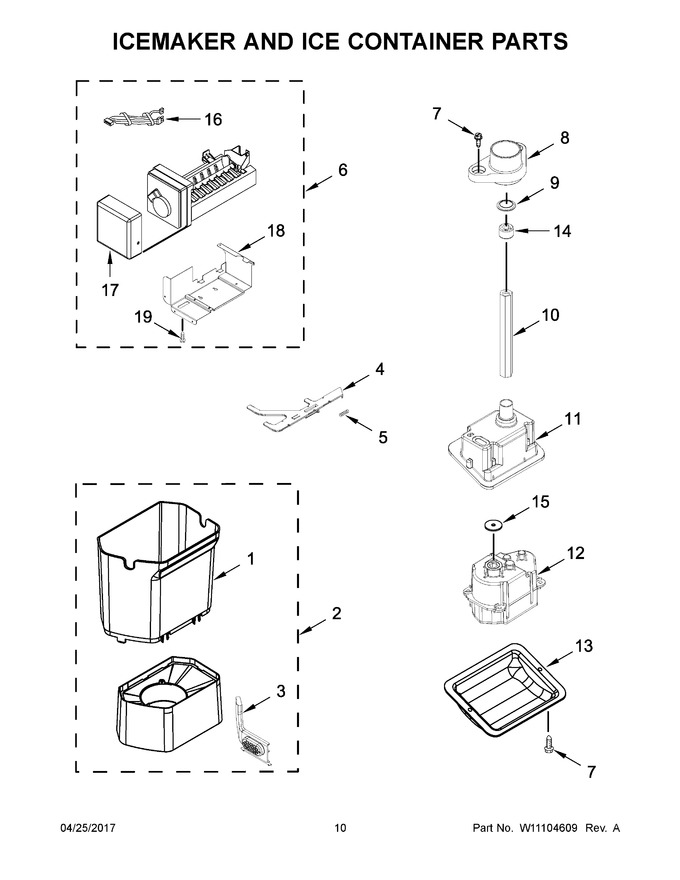

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222970 | Bin, Ice (Replaces: 2222970) |
|
Immediately | $ 262.66 | ||||
| 2 | W10784413 | Assembly, Ice Container |
|
$ 396.91 | |||||
| 3 | W10749207 | Button, Bin |
|
$ 69.70 | |||||
| 4 | W10134785 | Latch, Bin |
|
$ 110.96 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.55 | |||||
| 6 | W11579388 | Complete Icemaker Assembly (Replaces: W10790819) |
|
Immediately | $ 291.00 | ||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | W10785288 | Clip, Shaft |
|
$ 13.40 | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 10 | W11841865 | Shaft, Drive (Replaces: 2318030) |
|
Immediately | $ 115.26 | ||||
| 11 | W11404938 | Enclosure, Motor (Replaces: W10818351) |
|
Immediately | $ 72.96 | ||||
| 12 | 2315547 | Motor, Dispenser |
|
- | |||||
| 13 | W10785082 | Cover, Motor |
|
$ 90.83 | |||||
| 14 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
$ 85.41 | |||||
| 15 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 10.61 | ||||
| 16 | W10508659 | Assembly, Icemaker Wire |
|
$ 134.19 | |||||
| 17 | W10801567 | Cover, Icemaker |
|
- | |||||
| 18 | W10788852 | Bracket, Icemaker Mounting |
|
$ 163.83 | |||||
| 19 | W10784922 | Screw (black) |
|
- |
