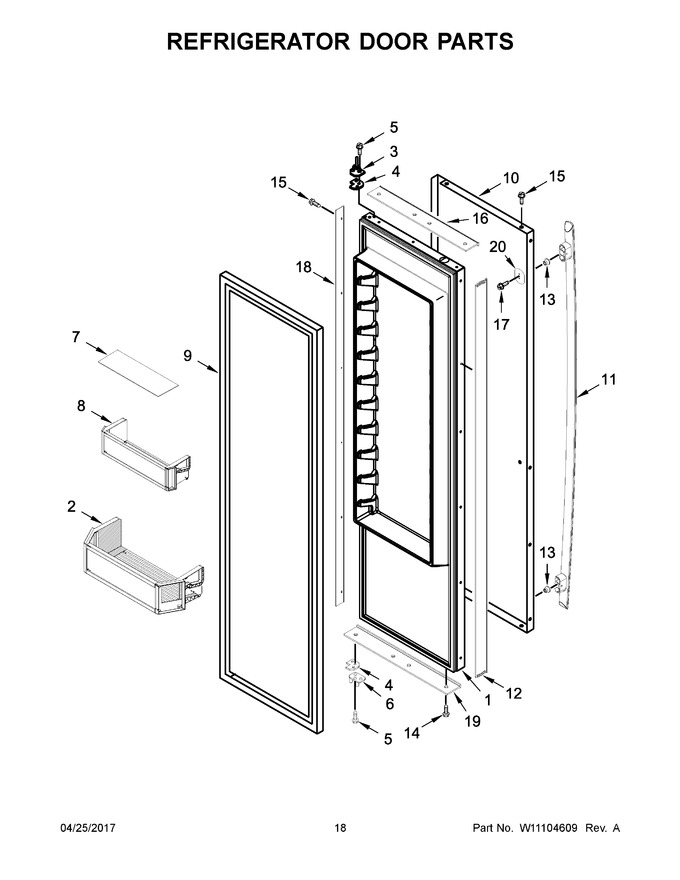

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797637		Door, Refrigerator   (Replaces: W10783291)				$ 884.49
2	W11350968		Bin, Gallon Door   (Replaces: W10594313)				$ 324.60
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Assembly, Hinge (bottom)			Immediately	$ 91.01
7	W10746024		Mat, Door Bin (shallow)		Appelez-nous	-
8	W10529454		Bin, Shallow Door				$ 276.35
9	W10800810		Gasket, Door (black)   (Replaces: W10776012)			Immediately	$ 352.36
10	W11797605		Skin, Door (stainless)   (Replaces: W10756459)				$ 1,508.86
11	WPW10183428		Handle, Door (stainless)   (Replaces: W10183428)			Immediately	$ 337.11
12	W10758377		Spacer, Handle Side Door				$ 109.79
13	WPW10168981		Mount, Handle   (Replaces: W10168981)				$ 17.69
14	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
15	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
16	W10766560		Spacer, Door (top)		Appelez-nous	-
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
18	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
19	W10766561		Spacer, Door (bottom)		Appelez-nous	-
20	W10127710		Plate, Handle Door			Immediately	$ 25.94
7A	W10746029		Mat, Door Bin (gallon)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
