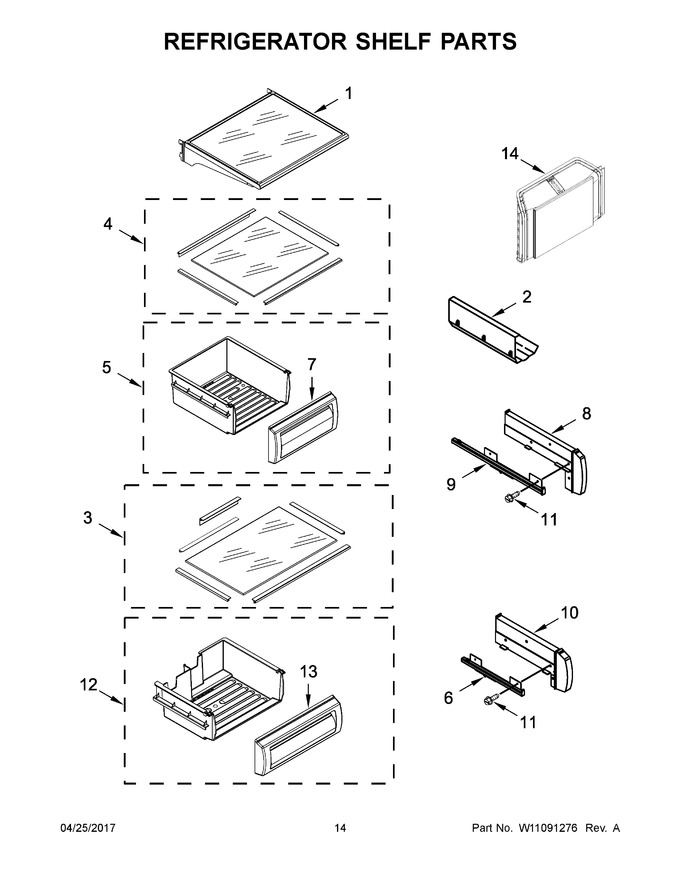

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10814798		Assembly, Shelf   (Replaces: W10760843)		Appelez-nous	-
2	W10701859		Rack, Wine				$ 19.38
3	W10814801		Assembly, Meat Pan Cover   (Replaces: W10778076)		Appelez-nous	-
4	W10814800		Assembly, Crisper Cover   (Replaces: W10778074)		Appelez-nous	-
5	W10407623		Assembly, Crisper Pan		Appelez-nous	-
6	2302954		Slide, Meat Pan (left Hand)				$ 309.14
7	WP2256247		Assembly, Crisper Pan Front   (Replaces: 2256247)				$ 119.90
8	2256223		Spacer, Crisper (left Hand)				$ 76.04
9	2302956		Slide, Crisper (left Hand)				$ 268.86
10	2256243		Spacer, Meat Pan (left Hand)				$ 74.74
11	WP8533928		Screw (left Hand)   (Replaces: 8533928)			Immediately	$ 7.43
12	W10407626		Assembly, Meat Pan		Appelez-nous	-
13	WP2256365		Assembly, Meat Pan Front   (Replaces: 2256365)				$ 156.16
14	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 15.44
10A	2256244		Spacer, Meat Pan (right Hand)				$ 93.33
11A	W11830745		Screw (stainless) (right Hand)   (Replaces: 8533929)		Appelez-nous	-
6A	2302955		Slide, Meat Pan (right Hand)				$ 308.86
8A	2256222		Spacer, Crisper (right Hand)				$ 80.32
9A	2302957		Slide, Crisper (right Hand)				$ 205.50
