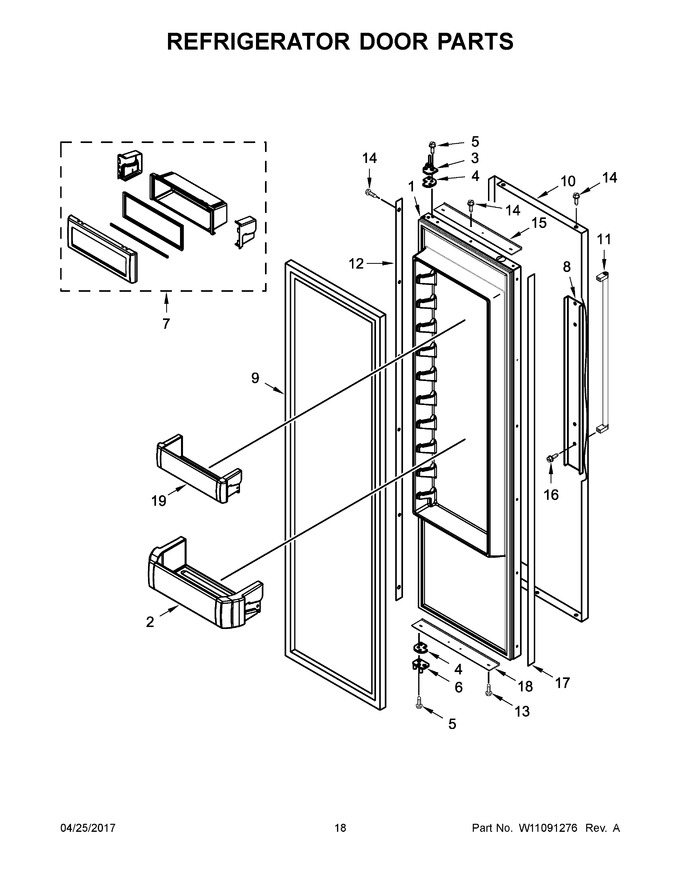

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10800781		Door, Refrigerator   (Replaces: W10761877)				$ 1,530.92
2	W10323746		Bin, Gallon Door				$ 108.24
3	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Assembly, Hinge (bottom)			Immediately	$ 91.01
7	W10323045		Assembly, Utility Bin			Immediately	$ 304.80
8	W10127710		Plate, Handle Door			Immediately	$ 25.94
9	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 295.71
10	W11797629		Skin, Door (stainless)   (Replaces: W10756458)		Appelez-nous	-
11	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
12	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
15	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W10758113		Spacer, Handle Side Door		Appelez-nous	-
18	W10761935		Spacer, Door Skin (bottom)		Appelez-nous	-
19	W10323598		Bin, Door				$ 104.79
