SELECT A DIAGRAM

01 - Cover Sheet

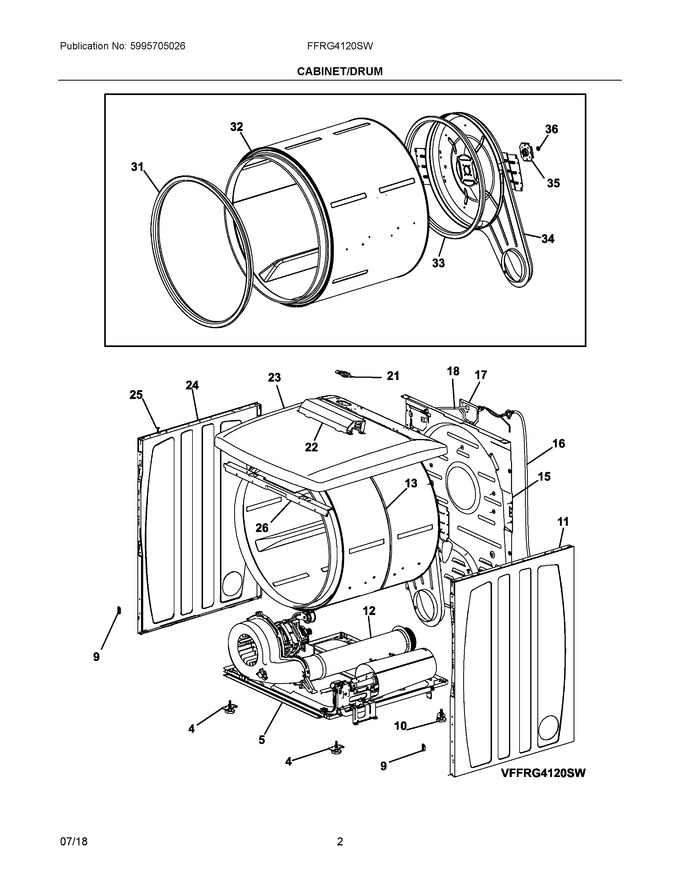

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Control Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304511372		Foot Assembly, Adjustable, Front				$ 23.13
5	5304511373		Base Assembly, Cabinet		Appelez-nous	-
9	5304511376		Pin, Front Panel				$ 8.68
10	4056015391		Foot Assembly, Adjustable   (Replaces: 5304511377)		Appelez-nous	-
11	5304538038		Panel, Side, White, Rh   (Replaces: 5304511378)		Appelez-nous	-
12	5304511379		Vent Pipe, Assembly, Rear		Appelez-nous	-
13	5304511380		Belt, Drum				$ 42.98
15	5304511436		Cover, Rear		Appelez-nous	-
16	5304511437		Power Cord		Appelez-nous	-
17	5304511438		Cover, Power Cord		Appelez-nous	-
18	5304511439		Harness, Wiring, Main				$ 202.85
21	5304511385		Cover, Hole, Line Speed		Appelez-nous	-
22	5304511386		Cover, Control Board				$ 39.79
23	5304511387		Top Cover, White				$ 252.31
24	5304538040		Panel, Side, White, Lh   (Replaces: 5304511388)		Appelez-nous	-
25	5304511389		Screw		Appelez-nous	-
26	5304511390		Rail, Top, Front		Appelez-nous	-
31	5304511391		Felt Seal, Drum, Front				$ 89.06
32	5304511392		Drum Assembly, Basket				$ 513.32
33	5304511393		Felt Seal, Drum, Rear				$ 62.66
34	5304511394		Duct Assembly, Drum Heating, Rear				$ 255.29
35	5304511395		Bearing House, Assembly				$ 91.76
36	5304511396		Nut				$ 7.37

    View Diagram in Separate Window       Print Part List
