Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304511442 Tube, Combustion Appelez-nous -
2 5304511443 Thermostat Special Order $ 118.85

3 5304511444 Thermostat Special Order $ 54.46

4 5304511445 Burner, Gas Appelez-nous -
5 5304511446 Ignitor, Burner In-Stock Immediately $ 172.31

6 5304511447 Support, Burner Appelez-nous -
7 5304511448 Valve Assembly, Gas Special Order $ 773.95

8 5304511449 Harness, Wiring, Valve Appelez-nous -
9 5304511374 Support, Heater Appelez-nous -
10 5304511450 Sensor, Flame Appelez-nous -
11 5304511451 Burner Assembly, Complete Special Order $ 1,203.11

NI 5304511452 Lp Kit, Conversion In-Stock Immediately $ 72.94

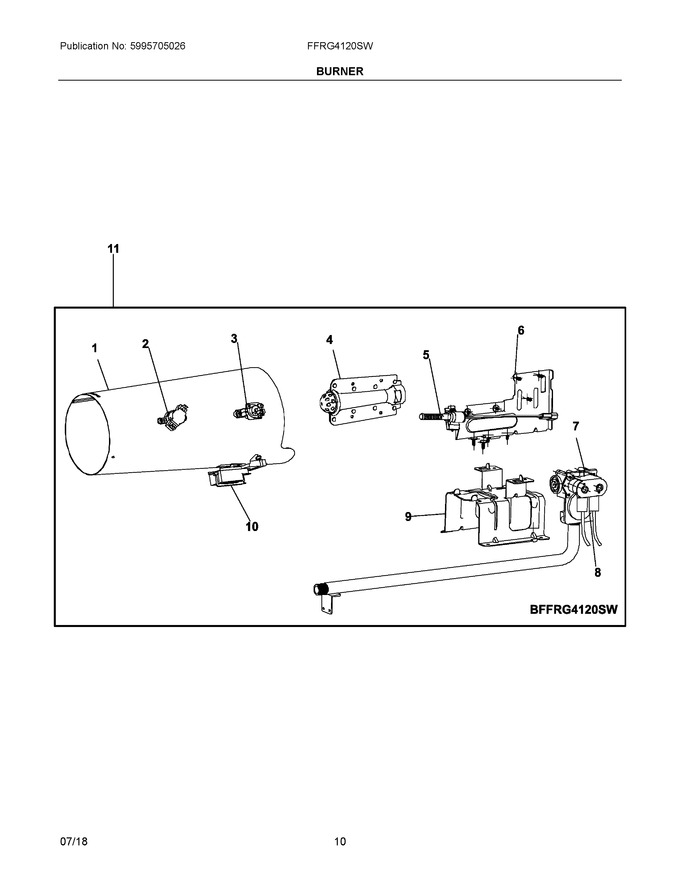

    View Diagram in Separate Window     Print Icon   Print Part List
