SELECT A DIAGRAM

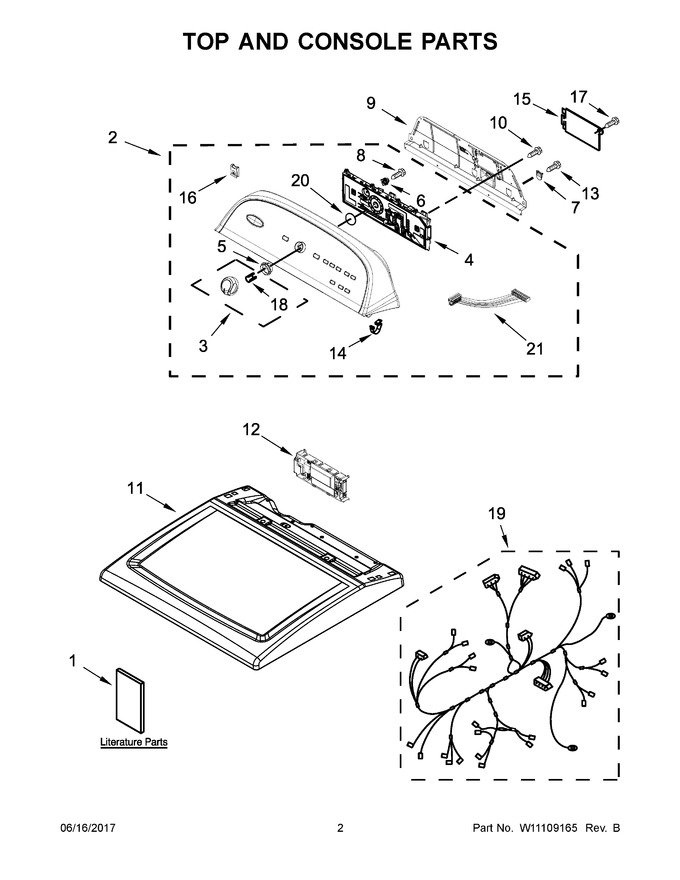

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11083794		Guide, Use & Care		Appelez-nous	-
2	W10497138		Assembly, Console (complete) (white)		Appelez-nous	-
3	WPW10251392		Knob, Assembly (white)   (Replaces: W10251392)				$ 59.55
4	WPW10269623		Assembly, User Interface   (Replaces: W10269623)				$ 313.89
5	W10325119		Spacer, Knob		Appelez-nous	-
6	W10274524		Tensioner, Fascia		Appelez-nous	-
7	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
9	W10550615		Panel, Rear Console				$ 116.83
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
11	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 215.10
12	W11112655		Control, Electric   (Replaces: W11085415)		Appelez-nous	-
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W10601020		Cover, Terminal Block		Appelez-nous	-
16	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10511243		Harness, Main		Appelez-nous	-
20	W10323092		Seal, User Interface		Appelez-nous	-
21	W10285495		Cable, User Interface		Appelez-nous	-
1A	W11083790		Instructions, Installation		Appelez-nous	-
1B	W10524061		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
