SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts

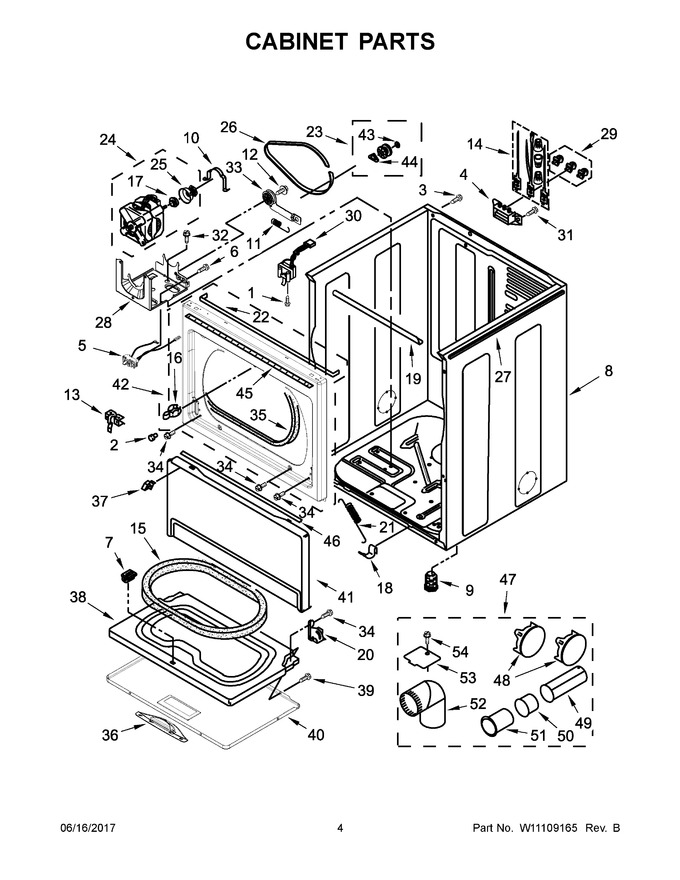

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw   (Replaces: 697773)				$ 8.57
2	693152		Bumper				$ 11.51
3	W10850756		Screw   (Replaces: W10773242)				$ 8.20
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 44.19
6	3400934		Assembly, Screw And Insulator		Appelez-nous	-
7	WP3389441		Assembly, Door Catch   (Replaces: 3389441)			Immediately	$ 7.29
8	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
9	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
10	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
11	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
12	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
13	W10854043		Lever, Switch   (Replaces: W10083220)				$ 30.45
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	W10325058		Seal, Door				$ 136.50
16	W11366436		Strike, Door   (Replaces: W10675495)				$ 25.18
17	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
18	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
19	W10236068		Bracket, Cabinet				$ 24.47
20	WP3387560		Assembly, Hinge (right)   (Replaces: 3387560)				$ 109.20
21	WP3387565		Spring, Door   (Replaces: 3387565)				$ 41.32
22	W10312811		Seal, Spill Guard				$ 67.73
23	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
24	W10489550		Motor, Assembly 60 Hz.		Appelez-nous	-
25	W10837625		Pulley, Motor   (Replaces: 3389729)			Immediately	$ 12.77
26	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
27	W10336128		Seal, Foam				$ 15.08
28	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
29	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
30	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 62.63
31	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
32	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
33	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
34	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
35	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
36	WPW10284093		Handle, Door (white)   (Replaces: W10284093)				$ 105.29
37	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
38	WP8066045		Door, Inner   (Replaces: 8066045)				$ 204.20
39	WP488627		Screw   (Replaces: 342055)				$ 8.11
40	W10279553		Door, Front (white)		Appelez-nous	-
41	WP3406797		Toe Panel (includes, Illus. 2 ) (white)   (Replaces: 697215)				$ 250.25
42	697227		Upper Front Panel (white)		Appelez-nous	-
43	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
44	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 9.68
45	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
46	W10576519		Seal, Deflector		Appelez-nous	-
47	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting), 4- Way Vent Kit   (Replaces: W10186596)			Immediately	$ 85.28
48	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
49	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
50	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
51	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
52	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
53	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
54	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
20A	WP3387559		Assembly, Hinge (left)   (Replaces: 3387559)				$ 109.20
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
