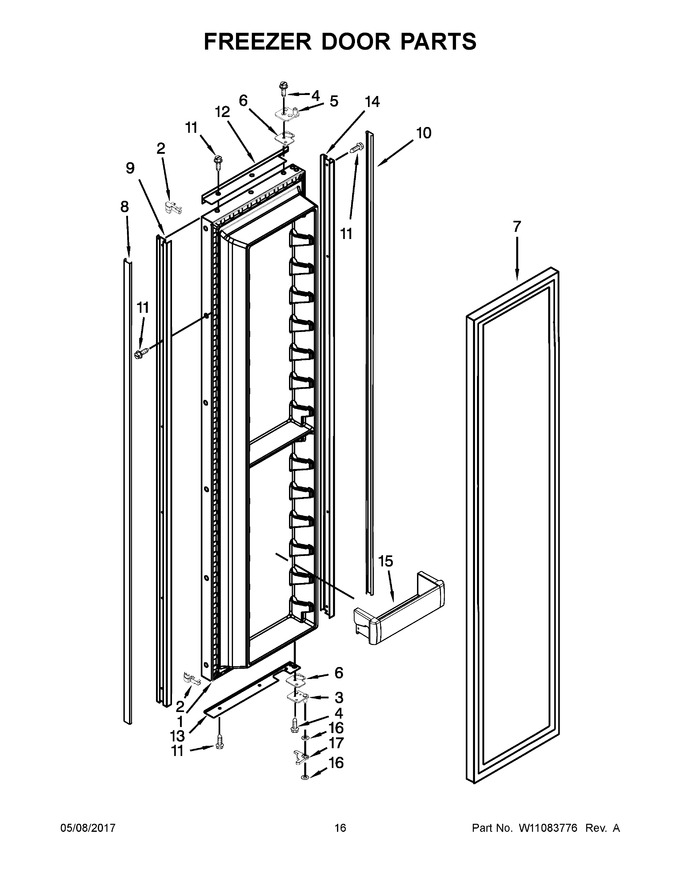

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10761959 | Door, Freezer |
|
- | |||||
| 2 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 3 | 2252294 | Assembly, Bottom Hinge |
|
- | |||||
| 4 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 5 | W10484480 | Assembly, Top Hinge |
|
$ 64.04 | |||||
| 6 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 7 | W11625072 | Gasket, Door (grey) (Replaces: W10760884) |
|
$ 295.71 | |||||
| 8 | 2314003S | Cover, Trim (handle Side) (aluminum) |
|
$ 174.63 | |||||
| 9 | 2309497S | Trim, Door (handle Side) (aluminum) |
|
$ 323.02 | |||||
| 10 | 2259448S | Trim, Cover (hinge Side) (aluminum) |
|
$ 179.50 | |||||
| 11 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 12 | 2309490S | Trim, Top Door (aluminum) |
|
$ 248.89 | |||||
| 13 | 2309496S | Trim, Bottom Door (aluminum) |
|
$ 245.49 | |||||
| 14 | 2309498S | Trim, Door (hinge Side) (aluminum) |
|
$ 324.38 | |||||
| 15 | W11590561 | Bin, Shallow (Replaces: W10323603) |
|
$ 94.23 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 38.28 |
