Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10782984 Assembly, Frame Grille (aluminum) Special Order $ 306.42

2 W11735285 Cover, Unit   (Replaces: W10545068) In-Stock Immediately $ 205.97

3 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

4 2256466 Panel, Unit Back Special Order $ 327.22

5 W10694109 Cover, Unit Front Special Order $ 189.60

6 W10645086 Divider, Unit Air Special Order $ 102.80

7 W10783303 Gasket, Foam Appelez-nous -

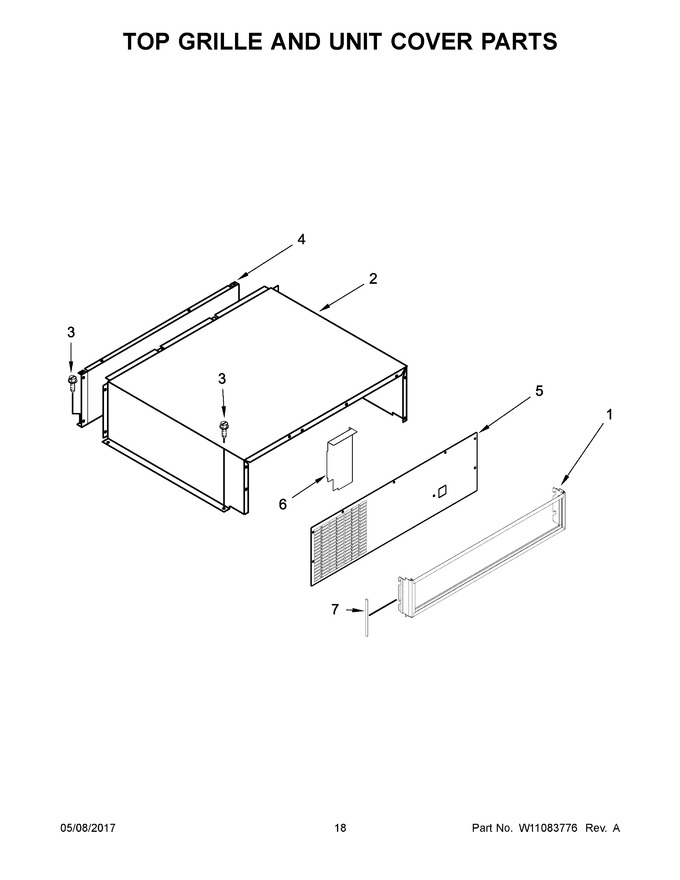

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KBSN608EPA01
