SELECT A DIAGRAM

01 - Cover Sheet

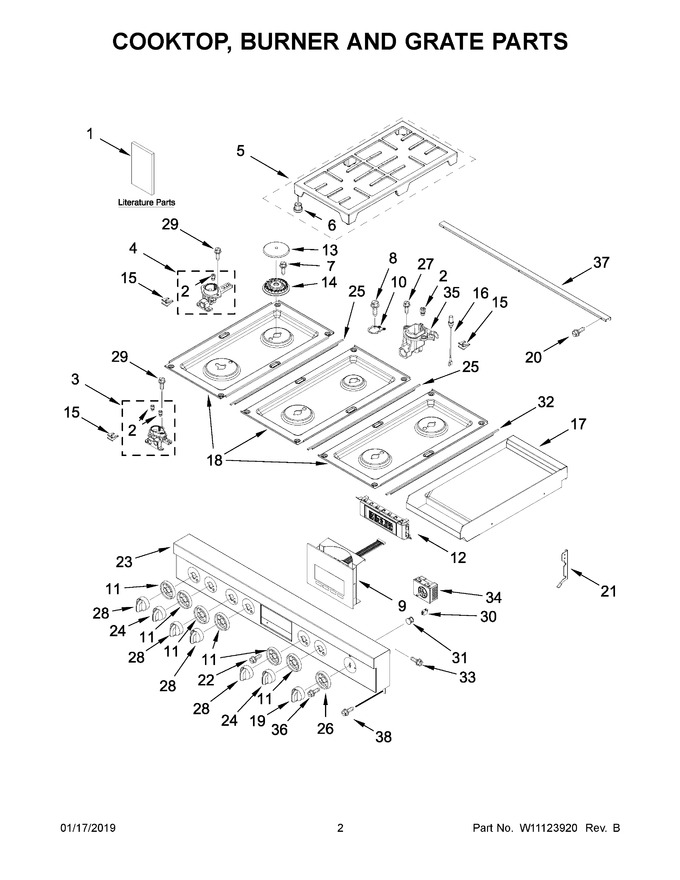

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11090434		Guide, Use & Care		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front & Right Front, High)				$ 90.69
3	W10846622		Assembly, Orifice Holder (left Front & Right Front)				$ 111.86
4	W10846623		Assembly, Orifice Holder (left Rear, Right Rear & Center Front)				$ 111.86
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
7	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
8	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
9	W10464534		Assembly, Keypad				$ 1,125.19
10	8286930		Gasket, Orifice				$ 95.73
11	W10276494		Bezel				$ 80.42
12	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
13	WPW10256034		Cap, Burner (black (left Front & Right Front))   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10879806)			Immediately	$ 89.01
15	W11684564		Spring, Electrode (all Except Center Rear)   (Replaces: W10827923)			Immediately	$ 12.65
16	8286724		Electrode, Burner (center Rear)				$ 30.12
17	W10625221		Module, Griddle				$ 1,457.32
18	W10352969		Cooktop (black (left))				$ 335.75
19	W10145566		Knob, Griddle (stainless)			Immediately	$ 51.66
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	WP74003976		Screw   (Replaces: W10906658)				$ 7.55
23	W10789955		Panel, Control				$ 573.45
24	W10145568		Knob, Dual (stainless)				$ 52.92
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W10145453		Bezel, Griddle				$ 80.42
27	W11676349		Screw, Burner Rail (m4) (center Rear)   (Replaces: 8286921)			Immediately	$ 14.76
28	W10145454		Knob, Single (stainless)				$ 46.94
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10116151		Housing, Indicator Light				$ 79.16
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10883622		Holder, Orifice (aux) (center Rear)				$ 111.86
36	W10674068		Screw				$ 24.39
37	W10269216		Trim, Island		Appelez-nous	-
38	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
13A	WPW10256032		Cap, Burner (black (left Rear, Right Rear & Center Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear, Right Rear & Center Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
15A	8286863		Spring, Electrode (center Rear)				$ 76.92
18A	W10352966		Cooktop (black (center))				$ 320.43
18B	W10352963		Cooktop (black (right))				$ 317.55
1A	W11090454		Instructions, Installation		Appelez-nous	-
1B	W10403303		Sheet, Tech (english)		Appelez-nous	-
1C	W10403304		Sheet, Tech (french)		Appelez-nous	-
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear, Right Rear & Center Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 103.68
NI	W11321066		Cord, Power   (Replaces: W10624586)				$ 118.94
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	4450800		Screw, Grounding				$ 13.47
NI	9757778		Bushing, Snap Split				$ 97.63
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10116182		Harness, Griddle		Appelez-nous	-
NI	W10145990		Harness, Main (18")				$ 248.54
NI	W10830795		Harness, Main (48" With Steam)				$ 358.07
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	W10399611		Harness, Switch				$ 138.15
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W10763503		Harness, Ignitor (includes 5 Ignitors)				$ 190.30
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10344051		Harness, Communication				$ 133.32
NI	W10116142		Harness, Convection Fan				$ 80.09
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
