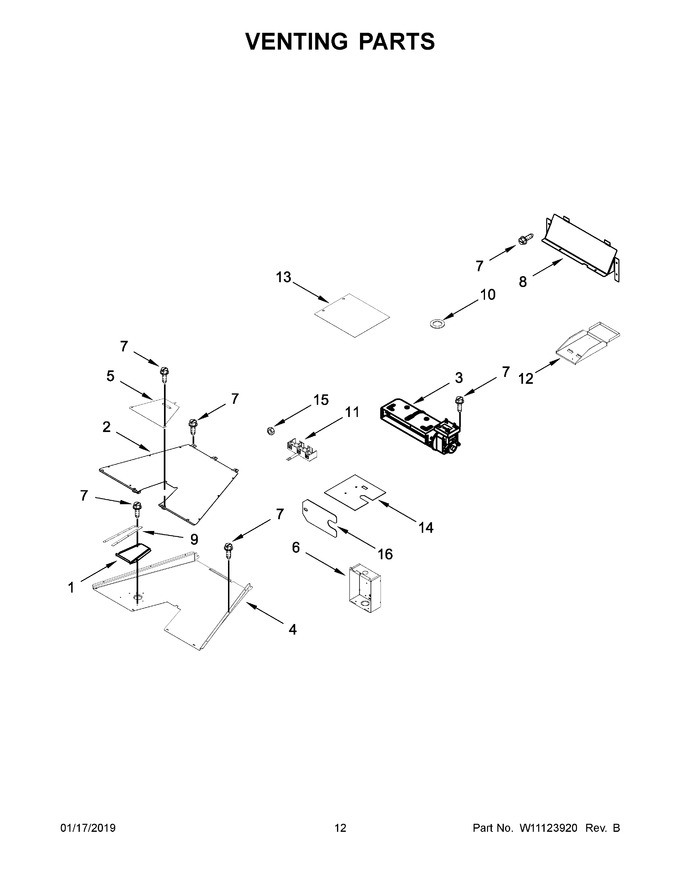

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10818234 | Slope, Exhaust Vent (30") |
|
- | |||||
| 2 | W10160896 | Vent, Cooling Top (30") |
|
- | |||||
| 3 | WPW10245511 | Blower 60mm (Replaces: W10245511) |
|
Immediately | $ 371.29 | ||||
| 4 | W10246078 | Vent, Cooling Bottom (30") |
|
- | |||||
| 5 | W10160875 | Plate, Cooling Latch |
|
- | |||||
| 6 | W10467022 | Box, Terminal |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | W10160844 | Bracket, Blower (18") |
|
- | |||||
| 9 | W10270397 | Seal, Vent Slope (30") |
|
- | |||||
| 10 | W10270396 | Seal, Chimney |
|
- | |||||
| 11 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 47.96 | ||||
| 12 | W10853036 | Support, Control |
|
- | |||||
| 13 | W10239444 | Seal, Control |
|
- | |||||
| 14 | 9759721 | Insulator, Terminal Box |
|
- | |||||
| 15 | WP112432 | Nut, Hex (Replaces: 112432) |
|
$ 8.63 | |||||
| 16 | W10145382 | Cover, Channel |
|
- | |||||
| 1A | W10818235 | Slope, Exhaust Vent (18") |
|
- | |||||
| 2A | W10160897 | Vent, Cooling Top (18") |
|
- | |||||
| 4A | W10273653 | Vent, Cooling Bottom (18") |
|
- | |||||
| 9A | W10270402 | Seal, Vent Slope (18") |
|
- |
