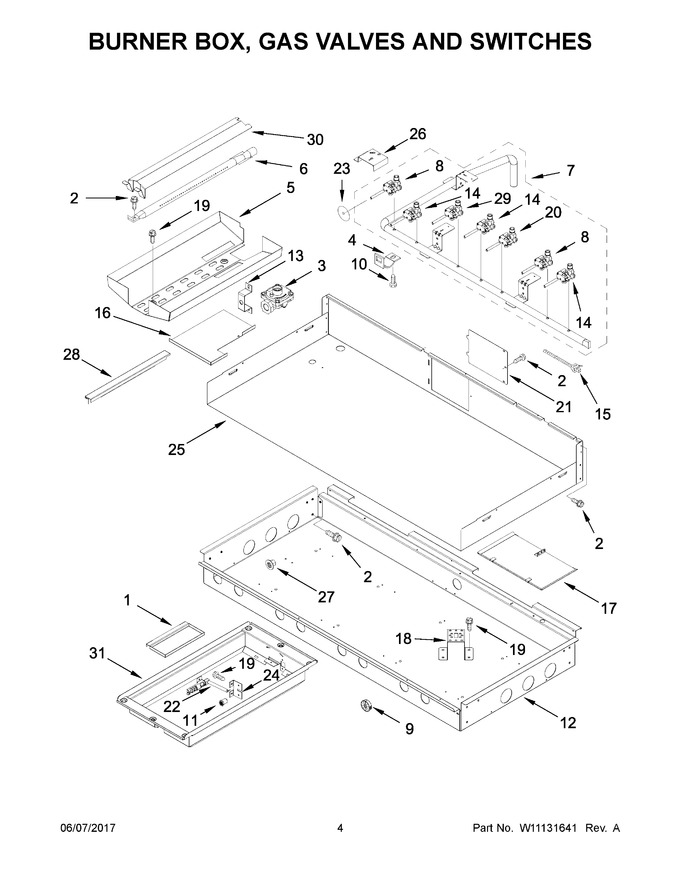

03 - Burner Box, Gas Valves And Switches
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10250473 | Tray, Drip |
|
$ 224.39 | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 238.90 | ||||
| 4 | WPW10432260 | Bracket, Valve (Replaces: W10432260) |
|
$ 73.99 | |||||
| 5 | W10269564 | Deflector, Grill |
|
$ 173.90 | |||||
| 6 | W10223569 | Burner, Grill |
|
$ 258.87 | |||||
| 7 | WPW10402604 | Assembly, Manifold (Replaces: W10402604) |
|
$ 492.23 | |||||
| 8 | WPW10371235 | Valve, Dual (Replaces: W10371235) |
|
Immediately | $ 268.41 | ||||
| 9 | W10189097 | Bushing, Burner |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw |
|
$ 6.82 | |||||
| 11 | 4456495 | Orifice, Grill |
|
- | |||||
| 12 | W10371517 | Box, Burner |
|
- | |||||
| 13 | W10250475 | Bracket, Grill Orifice Mounting |
|
- | |||||
| 14 | WPW10385582 | Valve, Single (Replaces: W10385582) |
|
Immediately | $ 340.85 | ||||
| 15 | W11675299 | Tie, Cable (Replaces: W10368807) |
|
$ 13.53 | |||||
| 16 | W10250474 | Holder, Drip Tray |
|
- | |||||
| 17 | W10250468 | Router 2, Drip Tray |
|
- | |||||
| 18 | W10560553 | Bracket, Burner |
|
- | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 20 | WPW10385583 | Valve, Simmer (Replaces: W10385583) |
|
Immediately | $ 332.10 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | W10268770 | Ignitor, Grill |
|
$ 161.69 | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 24 | W10250461 | Bracket, Grill Ignitor |
|
- | |||||
| 25 | W10778210 | Cover, Burner Box |
|
- | |||||
| 26 | 8285790 | Bracket, Mounting Orifice |
|
$ 85.85 | |||||
| 27 | W11601369 | Reignitor (Replaces: W10116108) |
|
Immediately | $ 67.35 | ||||
| 28 | W10250470 | Router 1, Drip Tray |
|
$ 128.77 | |||||
| 29 | W10385584 | Valve, Gas Grill |
|
- | |||||
| 30 | W10250462 | Spreader, Flame |
|
$ 92.34 | |||||
| 31 | WPW10267890 | Module, Grill (Replaces: W10267890) |
|
$ 471.83 | |||||
| NI | WPW10353133 | Tube (right Rear) (Replaces: W10353133) |
|
$ 174.89 | |||||
| NI | W10158807 | Tube, Grill |
|
$ 94.65 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10353154 | Tube (left Front) |
|
Immediately | $ 172.78 | ||||
| NI | W10280797 | Tube, (left Rear) |
|
- | |||||
| NI | W10353152 | Tube (center Front) |
|
$ 78.93 | |||||
| NI | W10353141 | Tube (right Front) |
|
$ 175.16 |
