SELECT A DIAGRAM

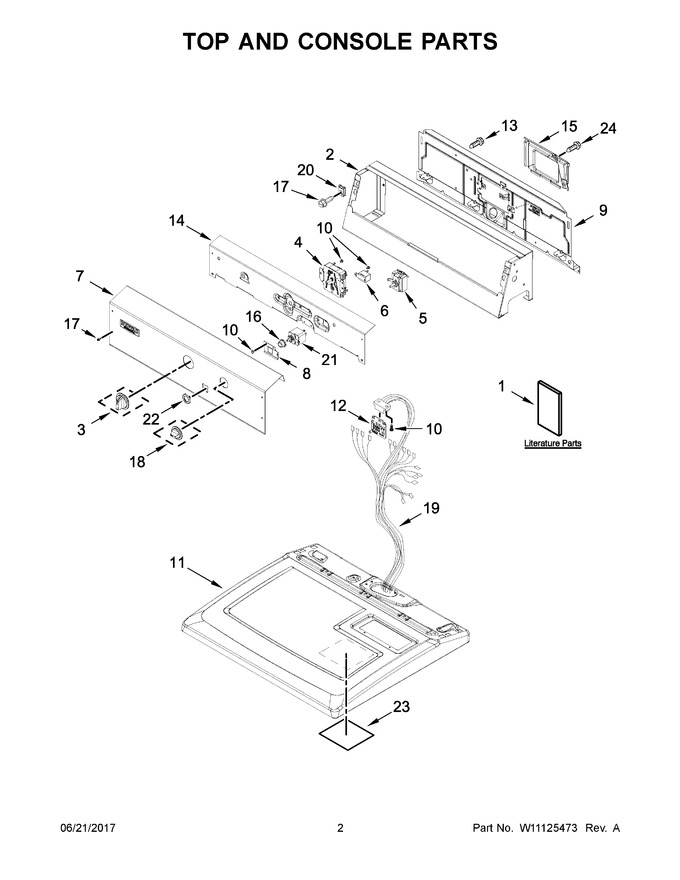

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11045669		Installation Instructions		Appelez-nous	-
2	W11124005		Console   (Replaces: W10461095)				$ 238.42
3	W11643382		Knob (black)   (Replaces: W11126770)			Immediately	$ 26.27
4	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
5	WP8578352		Switch, Rotary (5 Pos)   (Replaces: 8578352)				$ 237.85
6	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
7	W11158120		Fascia   (Replaces: W10918902)				$ 710.37
8	W10831297		Bracket, Push To Start		Appelez-nous	-
9	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
11	W10772880		Top (white)				$ 175.01
12	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	W10738304		Bracket, Back		Appelez-nous	-
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
16	W11112209		Button, Push To Start				$ 53.16
17	WPW10131119		Screw   (Replaces: W10386302)				$ 7.30
18	W11103226		Knob (black)   (Replaces: W11126769)				$ 71.25
19	W10762533		Harness, Main		Appelez-nous	-
20	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 8.10
21	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	W10510149		Bezel - Pts			Immediately	$ 28.63
23	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 30.95
24	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
1A	W11045671		Use And Care Guide		Appelez-nous	-
1B	W10758022		Wiring Diagram		Appelez-nous	-
1C	W11045673		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
