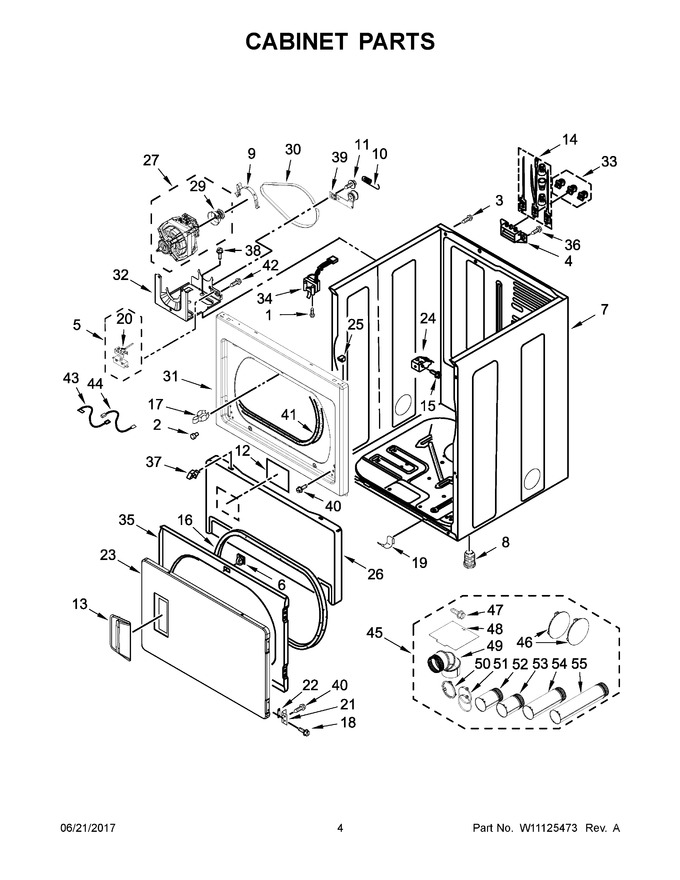

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw   (Replaces: 697773)				$ 7.70
2	693152		Bumper				$ 10.96
3	W10850756		Screw   (Replaces: W10773242)				$ 7.76
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 54.44
6	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 419.21
8	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 23.51
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 29.48
13	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 75.75
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	681615		Screw   (Replaces: 3391915)				$ 13.88
16	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
17	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
18	WP488627		Screw   (Replaces: 342055)				$ 7.57
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
20	WP8066120		Lever Switch   (Replaces: 8066120)			Immediately	$ 33.11
21	WPW10279703		Hinge, Assembly (silver)   (Replaces: W10279703)				$ 72.22
22	W10191265		Plug, Hinge (white)				$ 44.28
23	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
24	3391846		Clip, Front Panel				$ 21.15
25	WP345670		Lock Top   (Replaces: 345670)			Immediately	$ 7.70
26	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 238.33
27	W10841144		Motor   (Replaces: W10396031)			Immediately	$ 234.31
28	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 361.07
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
34	WP3406107		Switch, Door   (Replaces: 3406107)			Immediately	$ 31.20
35	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
36	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
37	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
39	WPW10344193		Pulley-idler Assembly   (Replaces: W10344193)			Immediately	$ 83.77
40	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	WP98129		Screw   (Replaces: 98129)				$ 7.56
43	3398948		Wire, Jumper (broken Belt Switch)				$ 61.58
44	W10167612		Wire, Belt Switch				$ 12.78
45	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Venting			Immediately	$ 76.65
46	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 71.98
47	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.79
48	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.96
49	WPW10416072		Elbow   (Replaces: W10416072)				$ 26.82
50	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 81.62
51	WP696392		Hose Clamp   (Replaces: 696392)				$ 8.12
52	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 78.95
53	WP8563748		Pipe, Exhaust   (Replaces: 8563748)				$ 12.90
54	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 91.38
55	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
