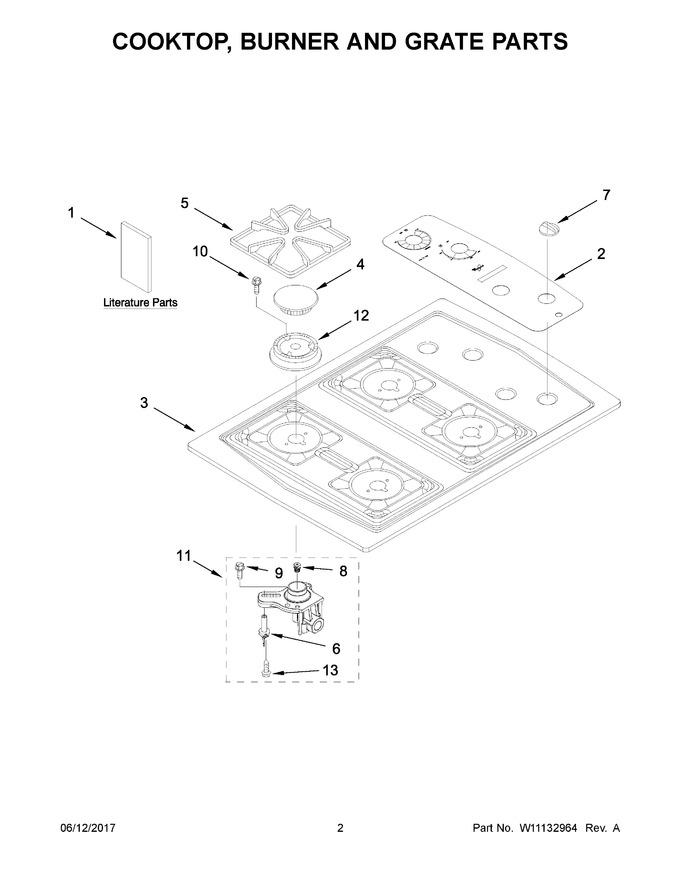

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switches
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11100530 | Instructions, Installation |
|
- | |||||
| 2 | WP8286502 | Panel, Control (black) (Replaces: 8286502) |
|
$ 148.03 | |||||
| 3 | WP3191242 | Cooktop (black) (Replaces: 3191242) |
|
$ 316.09 | |||||
| 4 | WPW10218223 | Cap, Burner (kit Of 4) (black) (Replaces: W10218223) |
|
$ 76.83 | |||||
| 5 | WPW10268483 | Assembly, Grate (kit Of 4) (black) (Replaces: W10268483) |
|
$ 140.02 | |||||
| 6 | W11134296 | Electrode (left Front & Right Rear) (Replaces: W10779132) |
|
$ 63.95 | |||||
| 7 | WP8286057BL | Knob, Control (black) (Replaces: 8286057BL) |
|
$ 22.41 | |||||
| 8 | WP9753929 | Orifice (left Front) (Replaces: 9753929) |
|
$ 84.74 | |||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 10 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 11 | W11134301 | Assembly, Orifice Holder (10.5k) (left Front) (Replaces: W10779154) |
|
- | |||||
| 12 | WPW10406797 | Head, Burner (12.5k) (left Front, Left Rear, Right Rear) (Replaces: W10406797) |
|
$ 92.91 | |||||
| 13 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11A | W11134302 | Assembly, Orifice Holder (9.1k) (left Rear) (Replaces: W10779155) |
|
- | |||||
| 11B | W11134303 | Assembly, Orifice Holder (5k) (right Front) (Replaces: W10779156) |
|
- | |||||
| 11C | W11134304 | Assembly, Orifice Holder (9.1k) (right Rear) (Replaces: W10863942) |
|
- | |||||
| 12A | WPW10406243 | Head, Burner (6k) (right Front) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 1A | 8304571 | Instructions, Undercounter |
|
- | |||||
| 1B | W11100532 | Instructions, Lp Conversion |
|
- | |||||
| 1C | W11100533 | Guide, Use & Care |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | 8286503 | Panel, Control (white) |
|
- | |||||
| 3A | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 326.58 | |||||
| 3B | W11230936 | Cooktop (stainless) (Replaces: W10157843) |
|
$ 440.01 | |||||
| 4A | W11189648 | Cap, Burner (kit Of 4) (gray) (Replaces: W10237940) |
|
- | |||||
| 5A | W10268484 | Assembly, Grate (kit Of 4) (white) |
|
- | |||||
| 6A | W11134295 | Electrode (left Rear & Right Front) (Replaces: W10779131) |
|
$ 63.95 | |||||
| 7A | WP8286057WH | Knob, Control (white) (Replaces: 8286057WH) |
|
$ 7.30 | |||||
| 8A | WP3192523 | Orifice (left Rear & Right Rear) (Replaces: 3192523) |
|
$ 93.56 | |||||
| 8B | 8286473 | Orifice (right Front) |
|
$ 85.68 | |||||
| NI | 4173634 | Bushing (Replaces: FE02349) |
|
$ 6.80 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 4456626 | Harness, Ignitor 15 |
|
$ 77.40 | |||||
| NI | 4456627 | Harness, Ignition 28 |
|
$ 220.65 | |||||
| NI | WP8286320 | Kit, Spud (Replaces: 8286320) |
|
$ 135.07 |
