01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

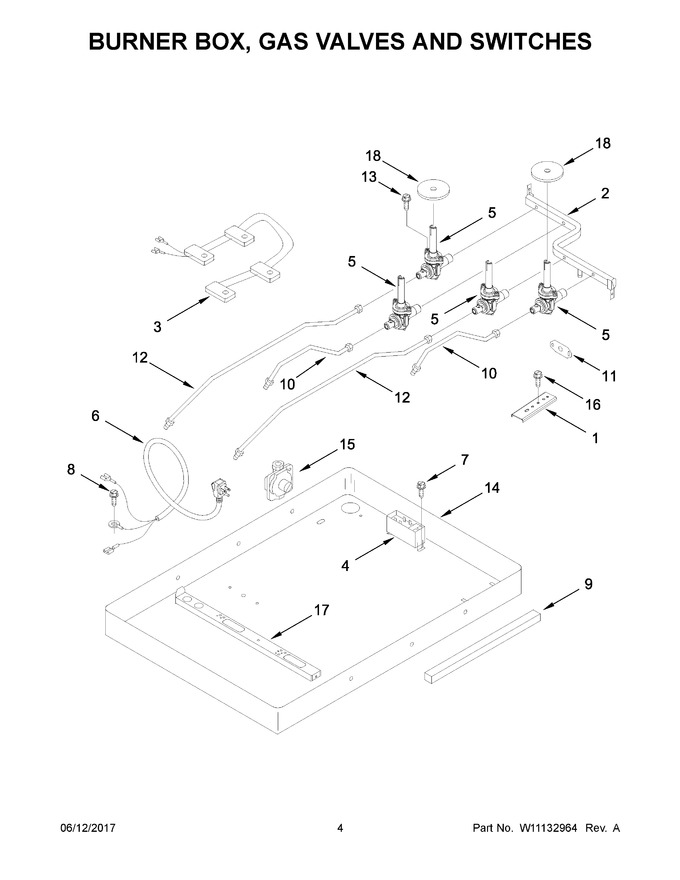

03 - Burner Box, Gas Valves And Switches
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 2 | 9759354 | Pipe, Manifold |
|
$ 170.70 | |||||
| 3 | WP4456905 | Harness, Switch (Replaces: 4456905) |
|
Immediately | $ 196.48 | ||||
| 4 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 322.41 | ||||
| 5 | WP4456817 | Valve, Gas (large) (left Front, Left Rear, Right Rear) (Replaces: 4456817) |
|
$ 334.11 | |||||
| 6 | W10392007 | Cord, Power |
|
$ 112.29 | |||||
| 7 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 8 | 12002277 | Screw (Replaces: 7101P640-60) |
|
$ 318.24 | |||||
| 9 | 9760045 | Seal, Foam |
|
$ 275.82 | |||||
| 10 | 3191318 | Tube (right Front & Right Rear) |
|
$ 114.31 | |||||
| 11 | 8286858 | Plate, Manifold |
|
- | |||||
| 12 | 3191320 | Tube (left Front & Left Rear) |
|
$ 120.11 | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 14 | 4456780 | Box, Burner |
|
- | |||||
| 15 | W11170853 | Regulator, Pressure (Replaces: W10449142) |
|
$ 330.26 | |||||
| 16 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 17 | W10203756 | Rail, Burner |
|
- | |||||
| 18 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 96.38 | |||||
| 5A | WP4456816 | Valve, Gas (small) (right Front) (Replaces: 4456816) |
|
$ 334.31 |
