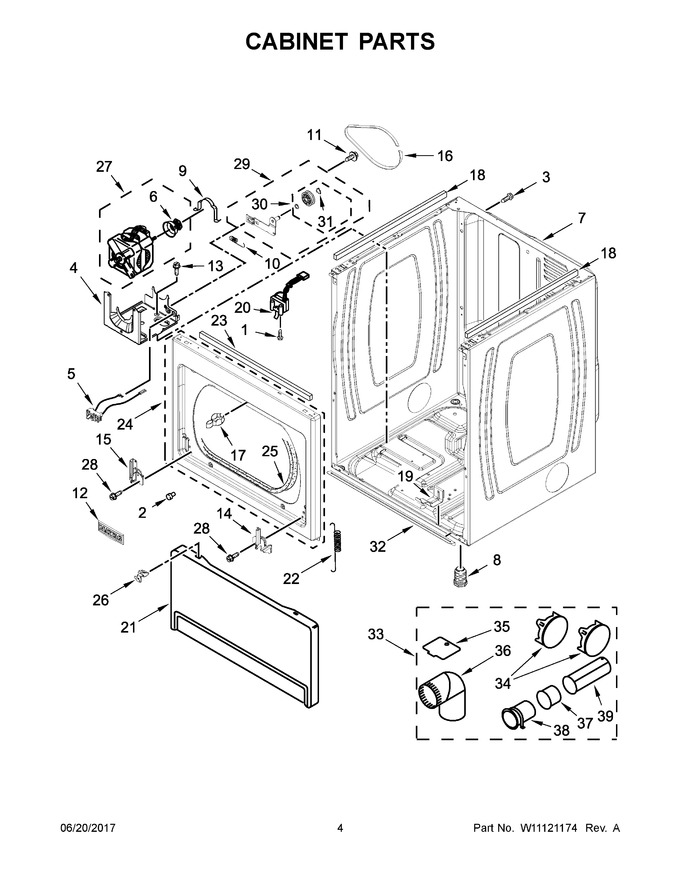

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 2 | 693152 | Bumper |
|
$ 11.51 | |||||
| 3 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 4 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10724631) |
|
Immediately | $ 26.90 | ||||
| 6 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 12.77 | ||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 13 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | W11371722 | Assembly, Hinge (right) (Replaces: W10284141) |
|
$ 106.42 | |||||
| 15 | W11376139 | Assembly, Hinge (left) (Replaces: W10284140) |
|
$ 106.42 | |||||
| 16 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 17 | W11366436 | Strike, Door (Replaces: W10675495) |
|
$ 25.18 | |||||
| 18 | W10336128 | Seal, Foam |
|
$ 15.08 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | WP3406107 | Switch, Door (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 21 | WP3406797 | Toe Panel (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 22 | WP3387565 | Spring, Door (Replaces: 3387565) |
|
$ 41.32 | |||||
| 23 | W10312811 | Seal, Spill Guard |
|
$ 67.73 | |||||
| 24 | 697227 | Upper Front Panel (white) |
|
- | |||||
| 25 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 26 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 27 | 279787 | Assembly, Motor (Replaces: W10396028) |
|
Immediately | $ 235.65 | ||||
| 28 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 29 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 30 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 31 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 32 | W10236068 | Bracket, Cabinet |
|
$ 24.47 | |||||
| 33 | W10323246 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent |
|
Immediately | $ 89.96 | ||||
| 34 | WPW10404617 | Multivent Plug (midnight Grey) (Replaces: W10404617) |
|
$ 75.58 | |||||
| 35 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 9.41 | |||||
| 36 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 28.16 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 82.90 | |||||
| 38 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 39 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 12A | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 21A | WPW10459664 | Toe Panel (chrome Shadow) (Replaces: W10459664) |
|
$ 210.71 | |||||
| 24A | WPW10459661 | Upper Front Panel (chrome Shadow) (Replaces: W10459661) |
|
$ 264.10 | |||||
| 7A | W11417445 | Cabinet (chrome Shadow) (Replaces: W10547699) |
|
Immediately | $ 515.78 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
