SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts

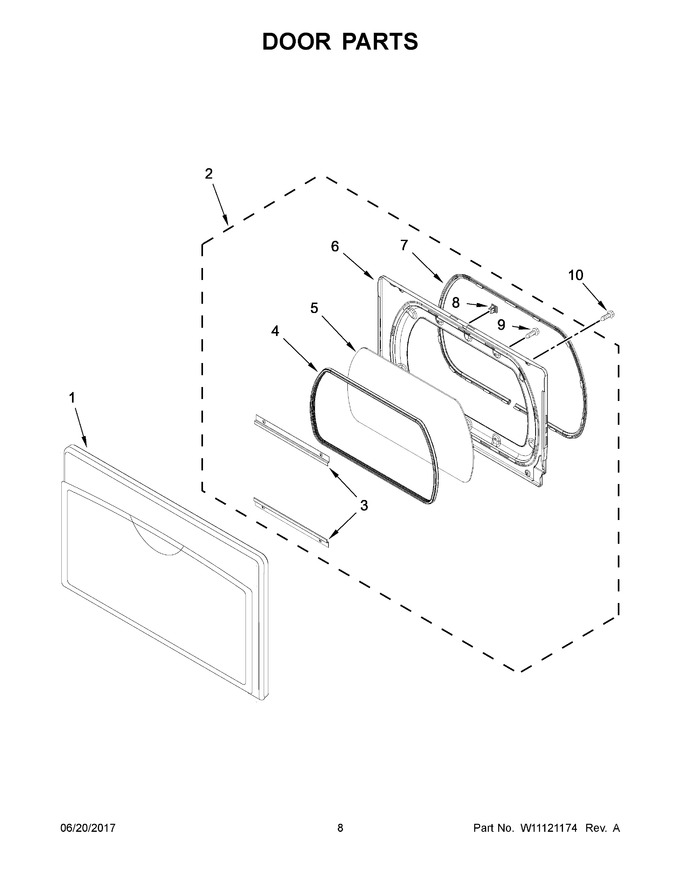

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11089309		Assembly, Outer Door (white)   (Replaces: W11033594)				$ 369.79
2	W11376676		Assembly, Inner Door (white)   (Replaces: W10513691)		Appelez-nous	-
3	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 17.15
4	W11676508		Seal, Window   (Replaces: W10284122)				$ 27.02
5	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 251.06
6	W10822055		Door, Inner (white)   (Replaces: W10470569)		Appelez-nous	-
7	WPW10354795		Seal, Door   (Replaces: W10284123)				$ 123.92
8	WP3389441		Assembly, Door Catch   (Replaces: 3389441)				$ 6.20
9	WP3373329		Screw   (Replaces: 3393258)				$ 7.68
10	WP8534022		Screw   (Replaces: 8534022)				$ 7.94
1A	W11236403		Assembly, Outer Door (chrome Shadow)   (Replaces: W11039169)				$ 358.38
2A	W11126813		Assembly, Inner Door (chrome Shadow)   (Replaces: W11087235)				$ 201.85
6A	W11124279		Door, Inner (chrome Shadow)   (Replaces: W11087233)				$ 177.04

    View Diagram in Separate Window       Print Part List
