View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

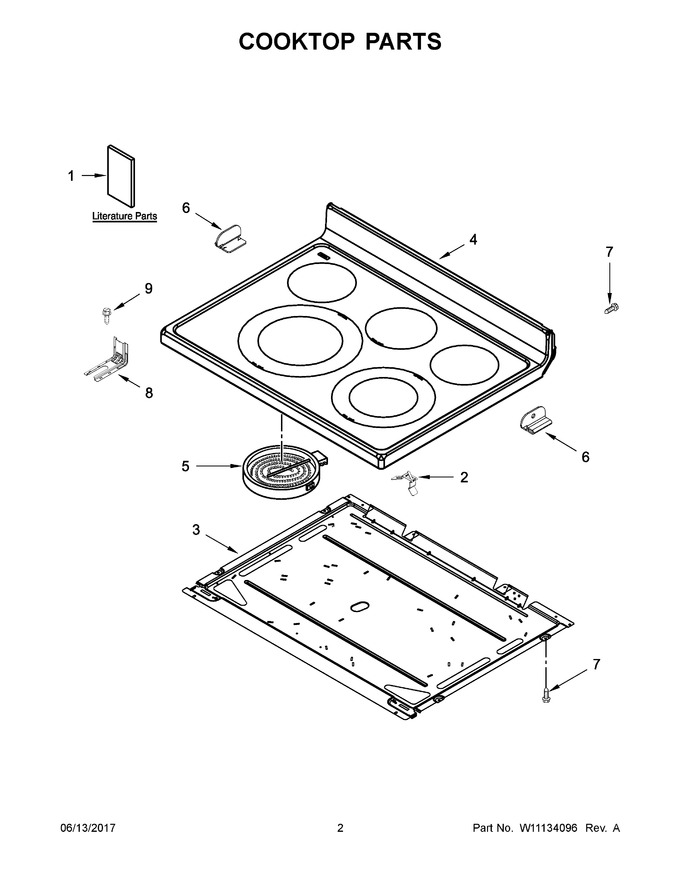

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 4 | W10472036 | Cooktop (white) (Replaces: W10380664) |
|
Immediately | $ 683.94 | ||||
| 5 | W10823727 | Element (3000w) (left Front) (Replaces: W10711900) |
|
Immediately | $ 342.63 | ||||
| 6 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 1A | W10719734 | Use And Care Guide, English |
|
- | |||||
| 1B | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10575156 | Tech Sheet, (english) |
|
- | |||||
| 4A | W10472035 | Cooktop (black) (Replaces: W10380665) |
|
Immediately | $ 697.64 | ||||
| 5A | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 5B | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5C | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10799047) |
|
$ 132.95 | |||||
| 6A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11134550 | Harness, Cooktop (right) (Replaces: W10744210) |
|
$ 228.90 | |||||
| NI | W11134596 | Harness, Wire (cooktop Left) (Replaces: W10349661) |
|
Immediately | $ 229.76 | ||||
| NI | W11134594 | Harness, Warm Zone (Replaces: W10278580) |
|
$ 192.72 | |||||
| NI | W11825098 | Harness, Hidden Bake (Replaces: W10465644) |
|
$ 86.33 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10183541 | Clip, Spring Steel |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10349711 | Harness, Wire Main |
|
- | |||||
| NI | W10084710 | Harness, Sensor (Replaces: W10174428) |
|
$ 136.05 |
