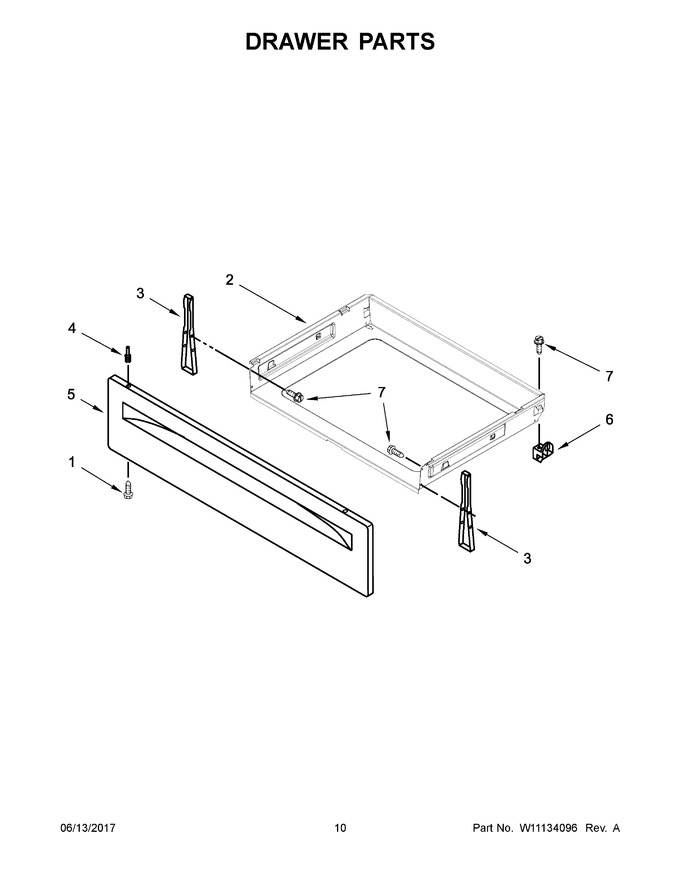

06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 3 | WPW10462912 | Bracket, Mounting Drawer (white And Black Models) (Replaces: W10462912) |
|
Immediately | $ 133.76 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 5 | W11219377 | Drawer, Front (white) (Replaces: 8053339) |
|
$ 212.57 | |||||
| 6 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 19.47 | ||||
| 3A | W10838990 | Bracket, Mounting Drawer (stainless Model) (Replaces: W10462910) |
|
Immediately | $ 88.95 | ||||
| 4A | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 5A | W11230488 | Drawer, Front (black) (Replaces: 8053341) |
|
$ 212.44 | |||||
| 5B | W11804926 | Drawer, Front (stainless) (Replaces: W10330070) |
|
Immediately | $ 186.57 |
