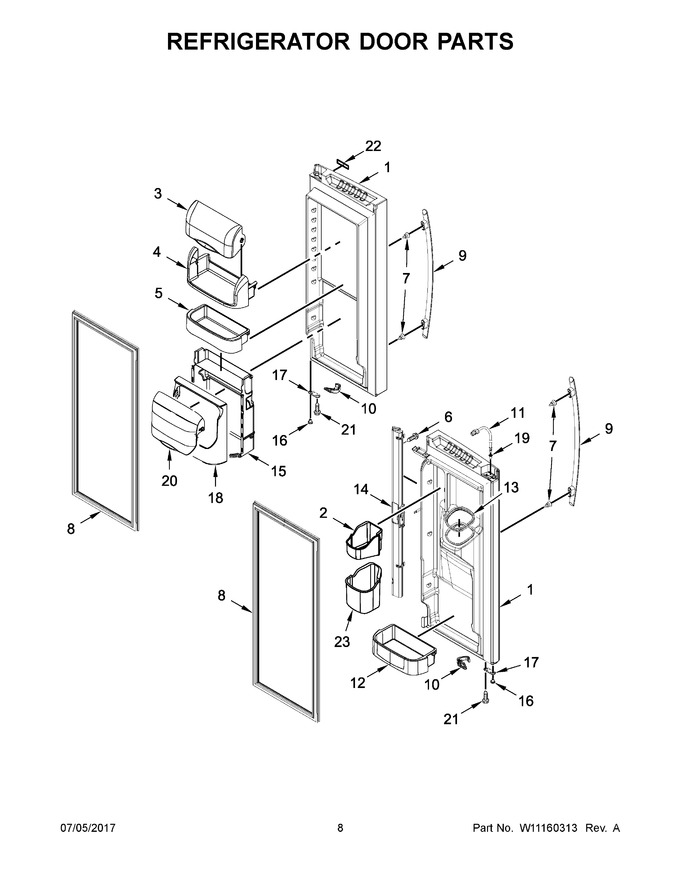

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107876S | Door, Refrigerator Left Hand (stainless) |
|
- | |||||
| 2 | W10187453 | Bucket, Door Upper (Replaces: 12977401) |
|
$ 73.08 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bucket, Chiller Top (Replaces: 12945801SP) |
|
Immediately | $ 84.62 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10830065) |
|
Immediately | $ 187.59 | ||||
| 9 | WPW10298244 | Handle, Door (stainless) (Replaces: W10298244) |
|
$ 327.03 | |||||
| 10 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 11 | W10275942 | Tube, Water |
|
Immediately | $ 120.27 | ||||
| 12 | WP12840004 | Bucket, Gallon (Replaces: 12840004) |
|
$ 94.89 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 342.08 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 269.63 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 22 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 23 | 12977501 | Bucket, Door Lower |
|
- | |||||
| 10A | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 1A | 13107870S | Door, Refrigerator Right Hand (stainless) |
|
- |
