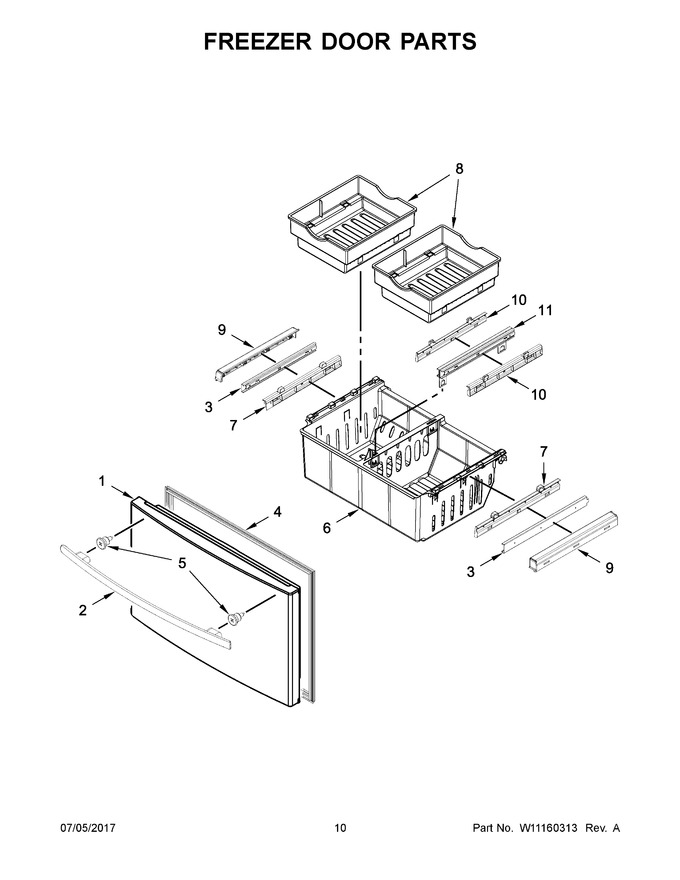

06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977874S		Door, Freezer (stainless)		Appelez-nous	-
2	WPW10298179		Handle, Door (stainless)   (Replaces: W10298179)				$ 319.69
3	WPW10235368		Glide, Drawer   (Replaces: W10235368)				$ 335.82
4	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 360.89
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Outer Bin   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
9	W10826790		Retainer, Glide (left Hand)				$ 62.48
10	W10184223		Adapter, Center Bin   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Assembly, Upper Glide				$ 318.09
9A	W10826791		Retainer, Glide (right Hand)				$ 62.48
