SELECT A DIAGRAM

01 - Cover Sheet

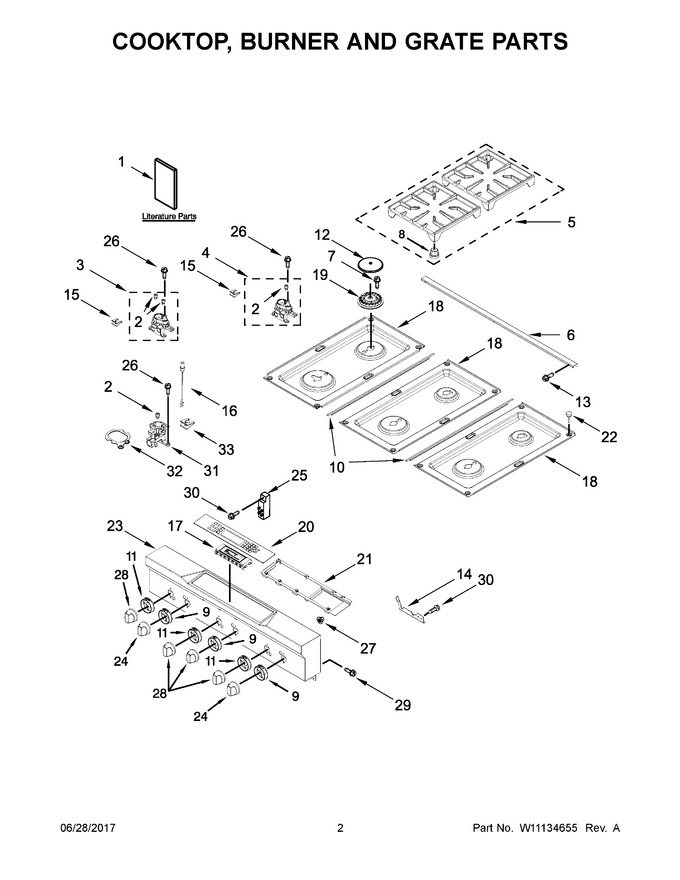

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves, And Switch Parts


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403294		Sheet, Tech (english)		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front & Right Front, High)				$ 90.69
3	W10846622		Assembly, Orifice Holder (left Front & Right Front)				$ 111.86
4	W10846623		Assembly, Orifice Holder (left Rear, Right Rear & Center Front)				$ 111.86
5	W11569347		Assembly, Grate (includes 2 Grates) (black)   (Replaces: W10221252)				$ 365.12
6	W10269217		Trim, Island				$ 308.49
7	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
9	W11103328		Bezel, Front   (Replaces: W10896327)		Appelez-nous	-
10	W10271524		T-strip				$ 212.34
11	W11103330		Bezel, Rear   (Replaces: W10896325)		Appelez-nous	-
12	WPW10256034		Cap, Burner (black (left Front & Right Front))   (Replaces: W10256034)				$ 138.19
13	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
14	W10130760		Bracket, Moving Console (left)				$ 75.94
15	W11684564		Spring, Electrode (all Except Center Rear)   (Replaces: W10827923)			Immediately	$ 12.65
16	W10854967		Electrode, Burner (center Rear)   (Replaces: 8286725)			Immediately	$ 48.38
17	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 510.59
18	W10352969		Cooktop (black (left))				$ 335.75
19	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10879806)			Immediately	$ 89.01
20	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 372.51
21	W10250476		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper, Door				$ 22.25
23	WPW10115888		Panel, Control   (Replaces: W10115888)				$ 568.08
24	W11244176		Knob (left Front & Right Front) (black)   (Replaces: W10250389)				$ 78.37
25	W11601369		Reignitor   (Replaces: W10116108)			Immediately	$ 67.35
26	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
27	7103P166-60		Nut				$ 18.56
28	W11177673		Knob (left Rear, Right Rear, Center Front, & Center Rear) (black)   (Replaces: W10250391)				$ 90.55
29	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
30	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
31	W10883622		Holder, Orifice (aux) (center Rear)				$ 111.86
32	8286930		Gasket, Orifice				$ 95.73
33	8286863		Spring, Electrode (center Rear)				$ 76.92
12A	WPW10256032		Cap, Burner (black (left Rear, Right Rear & Center Front))   (Replaces: W10256032)			Immediately	$ 88.38
12B	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	W10130759		Bracket, Moving Console (right)				$ 75.94
18A	W10352966		Cooktop (black (center))				$ 320.43
18B	W10352967		Cooktop (black (right))				$ 337.26
19A	WPW10256027		Spreader, Flame (left Rear, Right Rear & Center Front)   (Replaces: W10256027)			Immediately	$ 101.02
19B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
1A	W10403296		Sheet, Tech (french)		Appelez-nous	-
1B	W11090447		Guide, Use & Care		Appelez-nous	-
1C	W11090456		Instructions, Installation		Appelez-nous	-
24A	W11103350		Knob (left Front & Right Front) (stainless)   (Replaces: W10250392)				$ 86.27
26A	W10491985		Screw (center Rear)   (Replaces: 3196160)			Immediately	$ 7.55
28A	W11103351		Knob (left Rear, Right Rear, Center Front, & Center Rear) (stainless)   (Replaces: W10250394)				$ 83.54
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear, Right Rear & Center Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 103.68
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	9757778		Bushing, Snap Split				$ 97.63
NI	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
NI	4450800		Screw, Grounding				$ 13.47
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
NI	W10177363		Grommet, Flexible 60mm		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10726866		Connector, Ribbon				$ 83.88
NI	W11379158		Harness, Ignition (includes 5 Ignitors)   (Replaces: W10763504)			Immediately	$ 192.69
NI	W10338986		Harness, Wiring (main)				$ 335.03
NI	W10494088		Harness, Wire (communication)			Immediately	$ 75.57
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	W10399614		Harness, Switch				$ 151.21
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
NI	W11321066		Cord, Power   (Replaces: W10624586)				$ 118.94
NI	WP854334		Spacer, Rubber   (Replaces: 8010P086-60)				$ 13.94

    View Diagram in Separate Window       Print Part List
