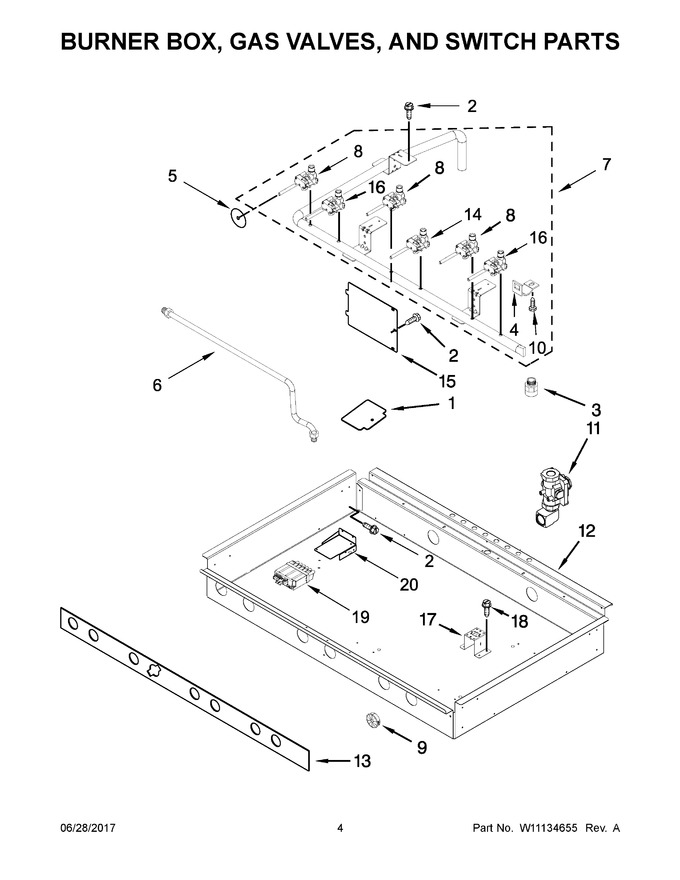

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10287036 | Cover, Housing |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | 4453115 | Adapter, Female |
|
$ 126.70 | |||||
| 4 | WPW10432260 | Bracket, Valve (Replaces: W10432260) |
|
$ 73.99 | |||||
| 5 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 6 | W10269191 | Tube, Pressure Regulator |
|
$ 217.69 | |||||
| 7 | W10402611 | Assembly, Manifold |
|
$ 201.17 | |||||
| 8 | WPW10385582 | Valve, Single (Replaces: W10385582) |
|
Immediately | $ 340.85 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw |
|
$ 6.82 | |||||
| 11 | W10449141 | Regulator, Pressure |
|
Immediately | $ 323.11 | ||||
| 12 | W10371516 | Box, Burner |
|
- | |||||
| 13 | W11688578 | Insulation, Burner Box (Replaces: W10145622) |
|
- | |||||
| 14 | WPW10385583 | Valve, Simmer (Replaces: W10385583) |
|
Immediately | $ 332.10 | ||||
| 15 | W10115843 | Cover, Ignition |
|
- | |||||
| 16 | WPW10371235 | Valve, Dual (Replaces: W10371235) |
|
Immediately | $ 268.41 | ||||
| 17 | W10560553 | Bracket, Burner |
|
- | |||||
| 18 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 19 | WPW10475147 | Module, Spark (Replaces: W10475147) |
|
Immediately | $ 238.24 | ||||
| 20 | W10498407 | Bracket, Spark Module |
|
$ 78.97 | |||||
| 3A | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| NI | WPW10353133 | Tube (right Rear) (also Center Rear) (Replaces: W10353133) |
|
$ 174.89 | |||||
| NI | W10353152 | Tube (center Front) |
|
$ 78.93 | |||||
| NI | W10353154 | Tube (left Front) |
|
Immediately | $ 172.78 | ||||
| NI | W10280797 | Tube, (left Rear) |
|
- | |||||
| NI | W10353141 | Tube (right Front) |
|
$ 175.16 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
