01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

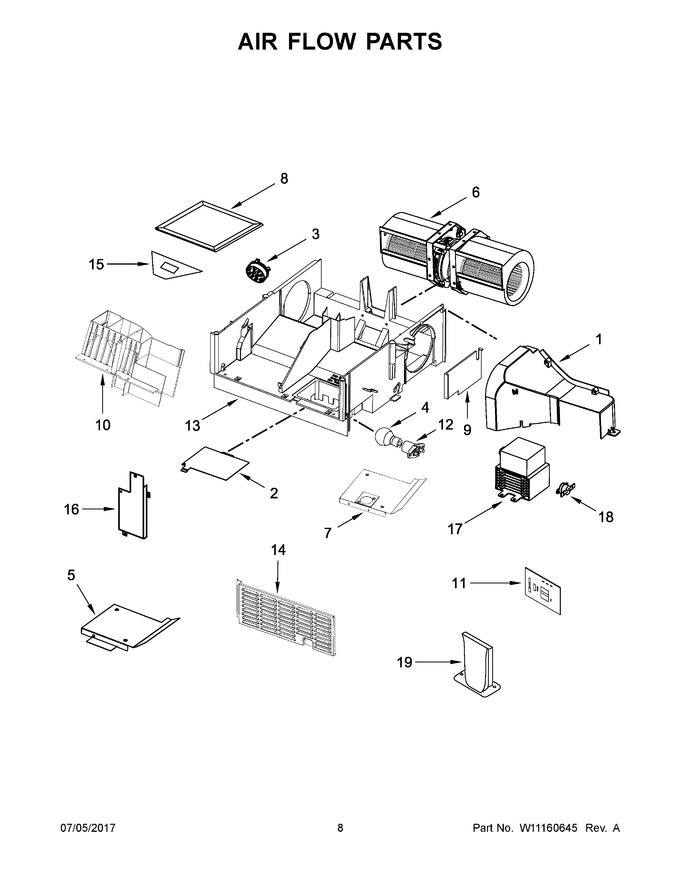

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | 8206626 | Sensor, Humidity |
|
$ 84.84 | |||||
| 4 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 7.71 | ||||
| 5 | W10138797 | Guide, Air |
|
$ 95.20 | |||||
| 6 | W11441128 | Motor, Hood Fan (Replaces: W10836180) |
|
Immediately | $ 222.23 | ||||
| 7 | W10247762 | Air Guide |
|
- | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 20.21 | ||||
| 9 | W11293488 | Cover, Right Duct (Replaces: W10700156) |
|
$ 84.08 | |||||
| 10 | WPW10448768 | Air Guide, Sealing Plate (Replaces: W10448768) |
|
$ 17.55 | |||||
| 11 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 56.88 | ||||
| 12 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 13 | W10771886 | Plate, Air Guide Base |
|
- | |||||
| 14 | W10342991 | Shield, Finger |
|
$ 169.83 | |||||
| 15 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 16 | W10247764 | Cover, Cavity Air Guide Inlet |
|
- | |||||
| 17 | WPW10693025 | Magnetron (Replaces: W10693025) |
|
Immediately | $ 185.06 | ||||
| 18 | W10491433 | Thermostat, Magnetron |
|
$ 91.51 | |||||
| 19 | W11381953 | Seal, Waterproof (Replaces: W10269467) |
|
- |
